Trim panel, trunk floor for BMW 1502-2002tii 1602 (1975)

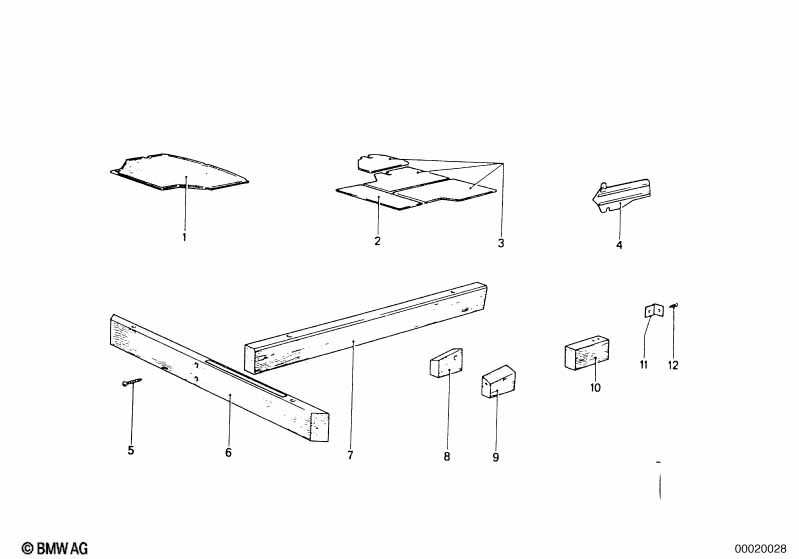

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat | GRAPHIT | 1 | 51471820361 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trimming foil | MITTELGRAU | X | 51951811281 | $120.86 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 51471834370 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 51477480166 | ENDED | Shop at ECS Tuning | |||||
| 04 | Trim panel | 1 | 51471814983 | ENDED | Shop at ECS Tuning | |||||
| 04 | Trim panel | 1 | 51471814984 | ENDED | Shop at ECS Tuning |
