Trim panel, trunk floor for BMW 1502-2002tii 2000 (1972)

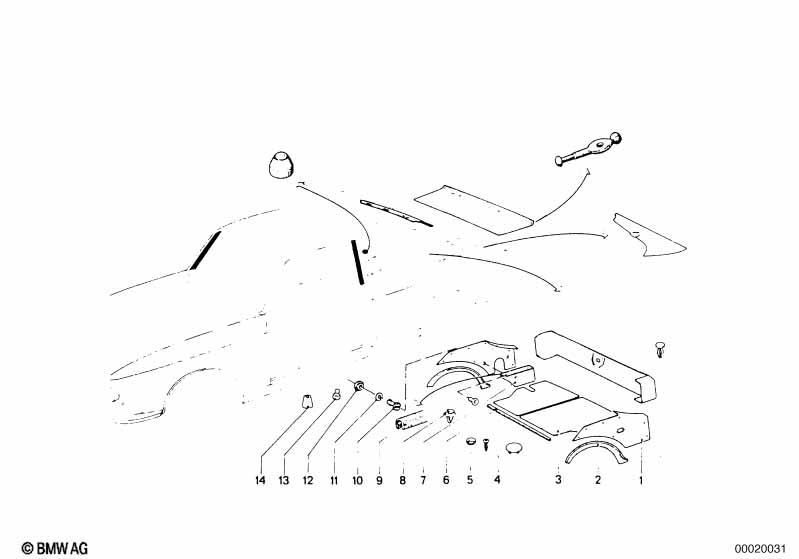

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel, black, left | 1 | 51431808115 | ENDED | Shop at ECS Tuning | |||||
| 02 | Side trim, black, right | 1 | 51431808116 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | LINKS | 1 | 51471803209 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | RECHTS | 1 | 51471803210 | ENDED | Shop at ECS Tuning | ||||
| 04 | Recessed oval head sheet-metal screw | ST2,9X16 | 9 | 07119902423 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Hollow washer | 9 | 51417570111 | $1.64 | Shop at ECS Tuning | |||||
| 06 | Trim panel | 1 | 51471804760 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trunk bag | 1 | 51471808600 | ENDED | Shop at ECS Tuning | |||||
| 08 | Clamp | 14 | 51411808209 | $1.16 | Shop at ECS Tuning | |||||
| 08 | Clamp | 14 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 09 | Edge strip for luggage compartment bag | 1 | 51471808688 | ENDED | Shop at ECS Tuning | |||||
| 10 | Pin | 2 | 51471816955 | ENDED | Shop at ECS Tuning | |||||
| 11 | Ring | 2 | 51471816954 | ENDED | Shop at ECS Tuning | |||||
| 12 | Holder | 2 | 51431816953 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 13 | Rivet | 3,2-4M | 4 | 07129948739 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 14 | Clamp | 14 | 51411870718 | $0.24 | Shop at ECS Tuning |
