Exterior trim / grill for BMW 1500-2000CS 1800 (1971)

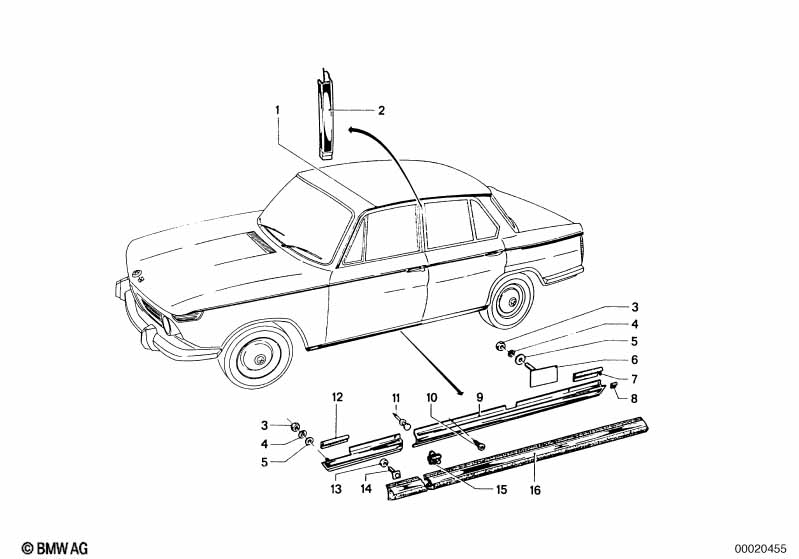

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding left | 1 | 51135650190 | $90.26 | ENDED | Shop at ECS Tuning | ||||
| 01 | Moulding right | 1 | 51135650191 | $90.26 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering left | 1 | 01/1966 | 01/1972 | 51137780132 | $104.35 | ENDED | Shop at ECS Tuning | ||
| 02 | Covering right | 1 | 01/1966 | 01/1972 | 51137780133 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 04 | Spring washer | B4 | 4 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 13 | Bush | 2 | 07/1968 | 01/1972 | 51131807882 | $3.17 | ENDED | Shop at ECS Tuning | ||
| 14 | Fastener | 4X14 | 2 | 07/1968 | 01/1972 | 51131801323 | $6.03 | ENDED | Shop at ECS Tuning | |
| 15 | Clip | 18 | 07/1968 | 01/1972 | 51131808841 | $1.21 | Shop at ECS Tuning | |||
| 16 | Moulding rocker panel left | 1 | 07/1968 | 01/1972 | 51131802167 | $64.45 | ENDED | Shop at ECS Tuning | ||
| 16 | Moulding rocker panel right | 1 | 07/1968 | 01/1972 | 51131802168 | $78.12 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
