Glazing for BMW 1500-2000CS 1800 (1971)

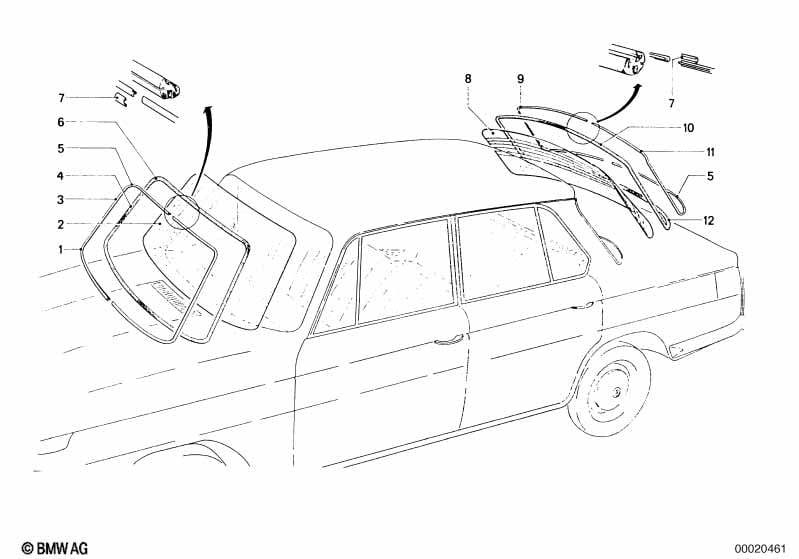

This Glazing technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Green windshield | 1 | 51311813707 | ENDED | Shop at ECS Tuning | |||||
| 02 | Front windshield clear | 1 | 51319558350 | $290.67 | ENDED | Shop at ECS Tuning | ||||
| 05 | Filling rubber | L=3650 MM | 1 | 09/1968 | 01/1972 | 51311801530 | $26.19 | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Sealing frame | X | 09/1968 | 01/1972 | 51311802221 | $144.89 | Shop at ECS Tuning | |||
| -- | Sealing frame | HECKSCHEIBE | X | 09/1968 | 01/1972 | 51311802536 | $163.20 | ENDED | Shop at ECS Tuning | |
| 06 | Sealing frame | 1 | 09/1968 | 01/1972 | 51311802221 | $144.89 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Filling rubber | L=3650 MM | X | 09/1968 | 01/1972 | 51311801530 | $26.19 | Shop at ECS Tuning | ||
| 07 | Cup | 2 | 09/1968 | 01/1972 | 51311801531 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Filling rubber | L=3650 MM | X | 09/1968 | 01/1972 | 51311801530 | $26.19 | Shop at ECS Tuning | ||
| 08 | Rear window green | 1 | 51311800768 | ENDED | Shop at ECS Tuning | |||||
| 08 | Heated rear window, green | 1 | 51311805939 | ENDED | Shop at ECS Tuning | |||||
| 08 | Rear window | 1 | 51317640150 | ENDED | Shop at ECS Tuning | |||||
| 08 | Heated rear window | 1 | 51319558366 | ENDED | Shop at ECS Tuning | |||||
| 12 | Sealing frame | HECKSCHEIBE | 1 | 09/1968 | 01/1972 | 51311802536 | $163.20 | ENDED | Shop at ECS Tuning | |
| only applies to | ||||||||||
| -- | Filling rubber | L=3650 MM | X | 09/1968 | 01/1972 | 51311801530 | $26.19 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
