Rear bumper USA for BMW 2.5CS-3.0CSL 3.0CS

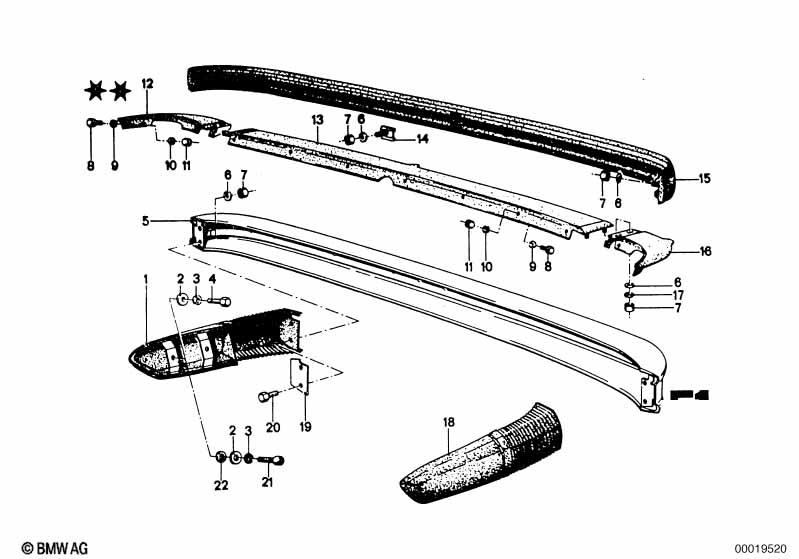

This Rear bumper USA technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper rear right | 1 | 51121827828 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spring washer | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Bumper rear center | 1 | 51121827800 | ENDED | Shop at ECS Tuning | |||||
| 06 | Washer | A6,4-ZNNIV SI | 17 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M6 | 17 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M5X12-8.8 ZN | 15 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Washer | 10X5,3X1-200 HV | 15 | 07119904206 | Shop at ECS Tuning | |||||
| 09 | Washer | 5.3-140 HV-ZNS | 15 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Spring washer | B5 | 15 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Nut | 15 | 51135770165 | $1.97 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cover | 1 | 51121827830 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cover | 1 | 51121827864 | ENDED | Shop at ECS Tuning | |||||
| 14 | Clip | 7 | 51111838076 | $1.98 | Shop at ECS Tuning | |||||
| 15 | Protective Mouldings | 1 | 51121827823 | ENDED | Shop at ECS Tuning | |||||
| 16 | Cover | 1 | 51121827829 | ENDED | Shop at ECS Tuning | |||||
| 17 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Bumper rear left | 1 | 51121827827 | ENDED | Shop at ECS Tuning | |||||
| 19 | Mounting plate | 2 | 51111880449 | $4.07 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M6X20-8.8-ZNS | 4 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 21 | Fillister-head screw | M8X20-8.8 ZN | 4 | 07119919969 | $0.78 | Shop at ECS Tuning | ||||
| 22 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning |
