Moldings for BMW 2.5CS-3.0CSL 2.5CS (1975)

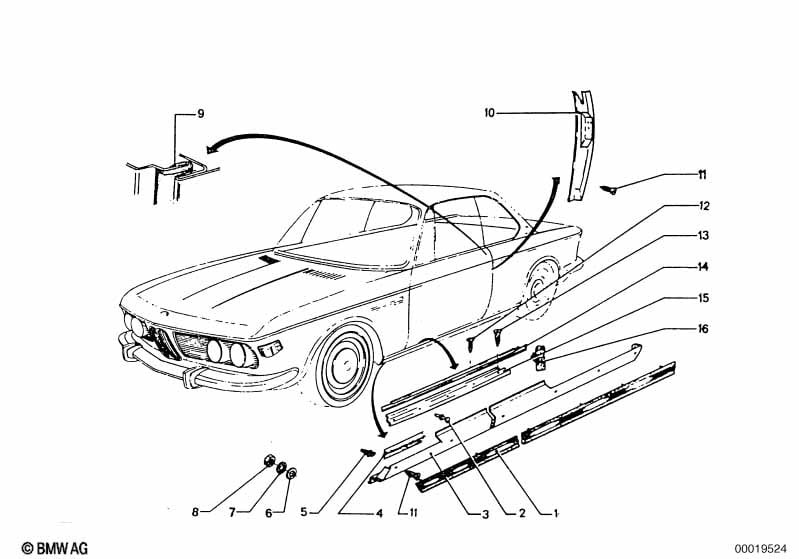

This Moldings technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding lower left | 1 | 51131810559 | $119.86 | ENDED | Shop at ECS Tuning | ||||
| 01 | Moulding lower right | 1 | 51131810560 | $119.86 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rivet | 3,2-3A | 4 | 07129948742 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Synthetic strip | X | 51131827359 | $9.13 | Shop at ECS Tuning | |||||
| 05 | Clamp | 4 | 51441802141 | $3.34 | Shop at ECS Tuning | |||||
| 06 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 07 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 09 | sealing | 2 | 51716754295 | $18.98 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering column rear left | 1 | 51131810777 | $385.29 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering column rear right | 1 | 51131810778 | $385.29 | Shop at ECS Tuning | |||||
| 11 | Sheet metal screw | 3,5X13 | 2 | 46637664250 | $1.62 | Shop at ECS Tuning | ||||
| 12 | Recessed oval head sheet-metal screw | ST3,5X16 | 10 | 07119902441 | $3.25 | Shop at ECS Tuning | ||||
| 13 | Sheet metal screw | 3,5X13 | 10 | 46637664250 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Rail left | 1 | 51476740133 | $426.30 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rail right | 1 | 51476740134 | $426.30 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rail left | 1 | 51136740136 | $122.87 | ENDED | Shop at ECS Tuning | ||||
| 15 | Rail right | 1 | 51136740137 | $122.87 | ENDED | Shop at ECS Tuning | ||||
| 16 | Clip | 12 | 51131807716 | $2.39 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
