Electr. exterior mirror for BMW 2.5CS-3.0CSL 2.5CS (1975)

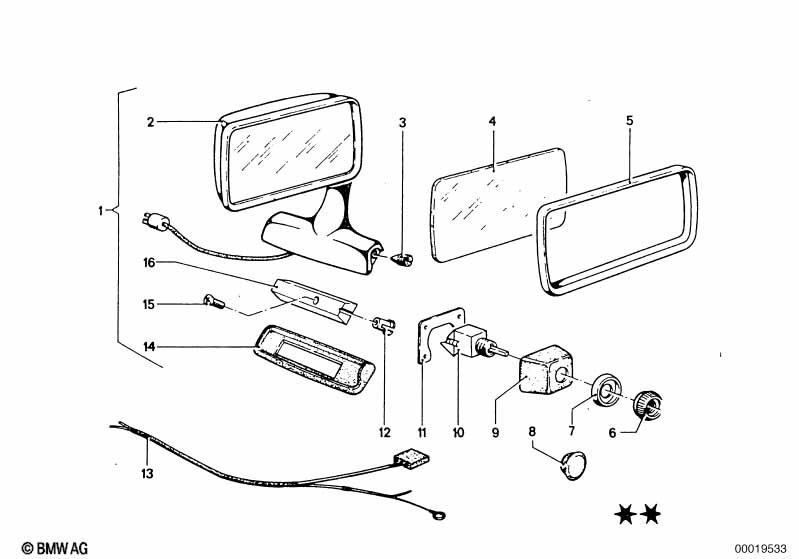

This Electr. exterior mirror technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Grub screw | 1 | 51161808536 | $2.16 | ENDED | Shop at ECS Tuning | ||||
| 04 | Mirror glass (driver's side) | 1 | 51161840049 | $19.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Glass holding frame outer | 1 | 51161827186 | $90.40 | ENDED | Shop at ECS Tuning | ||||
| 06 | Trim ring | 1 | 61311358688 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trim ring | 1 | 51161827204 | $3.96 | Shop at ECS Tuning | |||||
| 09 | Cap | 1 | 51411827175 | ENDED | Shop at ECS Tuning | |||||
| 10 | Switch electr. exterior mirror | 1 | 61311358626 | $170.39 | ENDED | Shop at ECS Tuning | ||||
| 11 | Base | 1 | 51411827187 | $1.64 | ENDED | Shop at ECS Tuning | ||||
| 12 | Nut | M4 | 1 | 07129925804 | $1.09 | ENDED | Shop at ECS Tuning | |||
| 15 | Set csk.fillister head screw 10 | M4X20 | 2 | 07509064282 | ENDED | Shop at ECS Tuning | ||||
| 16 | Mirror holder | 1 | 51161827207 | $12.09 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
