Glazing for BMW 2.5CS-3.0CSL 3.0CS (1973)

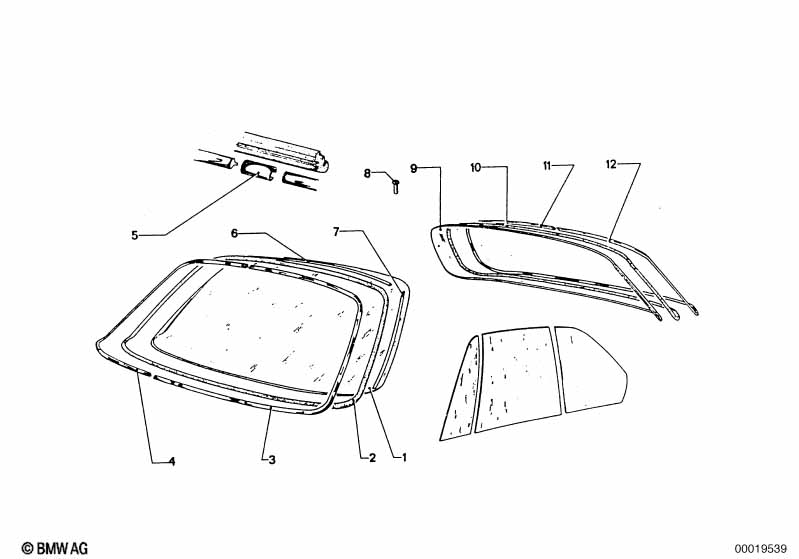

This Glazing technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green windshield | 1 | 51311811131 | $650.26 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front windshield clear | 1 | 51319558351 | $589.18 | ENDED | Shop at ECS Tuning | ||||
| 02 | Sealing frame | 1 | 09/1965 | 12/1974 | 51311812587 | $108.66 | ENDED | Shop at ECS Tuning | ||
| 02 | Sealing frame | 1 | 09/1965 | 11/1975 | 51317740114 | $131.64 | Shop at ECS Tuning | |||
| 03 | Decorative frame left | 1 | 51317740117 | $159.08 | Shop at ECS Tuning | |||||
| 04 | Decorative frame right | 1 | 51317740118 | $159.08 | Shop at ECS Tuning | |||||
| 05 | Cup | 4 | 51317740158 | $11.51 | Shop at ECS Tuning | |||||
| 06 | Moulding upper | 1 | 09/1965 | 12/1974 | 51311812589 | $143.96 | ENDED | Shop at ECS Tuning | ||
| 07 | Decorative strip | 2 | 09/1965 | 12/1974 | 51311812591 | ENDED | Shop at ECS Tuning | |||
| 08 | Rivet | C3X8 | 9 | 09/1965 | 12/1974 | 07119949208 | $0.21 | Shop at ECS Tuning | ||
| 09 | Heated rear window, green | 1 | 51311811287 | $418.27 | Shop at ECS Tuning | |||||
| 09 | Rear window | 1 | 51311811446 | ENDED | Shop at ECS Tuning | |||||
| 10 | Sealing frame | 1 | 51317740154 | $131.64 | Shop at ECS Tuning | |||||
| 11 | Decorative frame right | 1 | 51317740168 | $348.00 | ENDED | Shop at ECS Tuning | ||||
| 12 | Decorative frame left | 1 | 51317740167 | $348.00 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
