Door window lifting mechanism front for BMW 2.5CS-3.0CSL 2.5CS (1975)

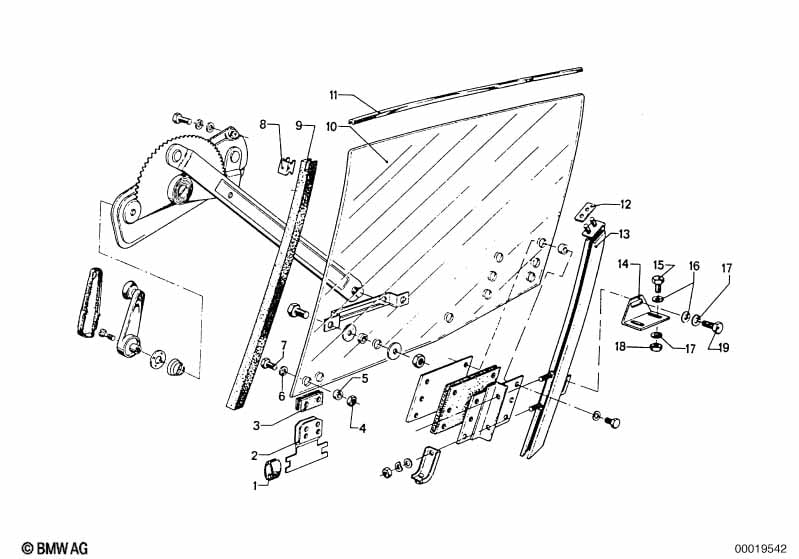

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wedge | 2 | 51326754228 | ENDED | Shop at ECS Tuning | |||||
| 02 | Guide plate | 2 | 51326754227 | ENDED | Shop at ECS Tuning | |||||
| 03 | Distance rubber | 2 | 51326754222 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 05 | Bush | 4 | 51326754220 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M5X15 | 10 | 07119913235 | $3.51 | ENDED | Shop at ECS Tuning | |||
| 09 | Front window guide | X | 51326654262 | $68.24 | Shop at ECS Tuning | |||||
| 10 | Door window green front left | 1 | 51321811135 | $330.54 | Shop at ECS Tuning | |||||
| 10 | Door window green front right | 1 | 51321811136 | $330.54 | Shop at ECS Tuning | |||||
| 11 | Moulding upper left | 1 | 51326754224 | $80.34 | ENDED | Shop at ECS Tuning | ||||
| 11 | Moulding upper right | 1 | 51326754225 | $80.34 | ENDED | Shop at ECS Tuning | ||||
| 12 | Reinforcement | 2 | 51326754267 | ENDED | Shop at ECS Tuning | |||||
| 13 | Guide rail | 1 | 51326754235 | ENDED | Shop at ECS Tuning | |||||
| 13 | Guide rail | 1 | 51326754236 | $277.88 | ENDED | Shop at ECS Tuning | ||||
| 14 | Support | 2 | 51326754229 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Washer | A6,4-200HV-ZNS3 | 22 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Spring washer | B6 | 22 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Hex nut | M6-04-2-ZN | 4 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M6X8 | 2 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
