Door window lifting mechanism front for BMW 2.5CS-3.0CSL 2800CS (1971)

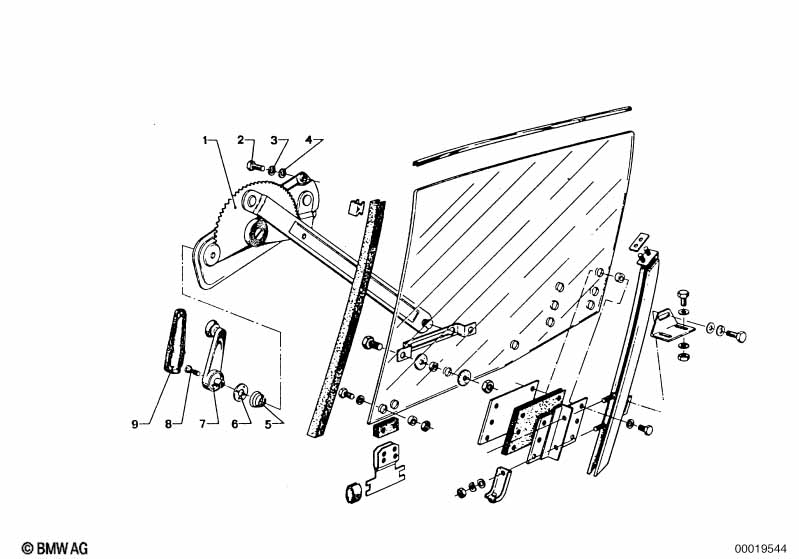

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2800CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter front left | 1 | 51326746100 | $281.08 | ENDED | Shop at ECS Tuning | ||||
| 01 | Window lifter front right | 1 | 51326746101 | $281.08 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Conical spring | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 06 | Stop disk | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 07 | Window crank with cover | 2 | 51321809764 | $63.26 | ENDED | Shop at ECS Tuning | ||||
| 09 | Window crank | SCHWARZ | 2 | 51321875839 | $34.14 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2800CS Door window lifting mechanism front?
- This technical diagram illustrates the Door window lifting mechanism front within the Vehicle trim group for the 2.5CS-3.0CSL 2800CS produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter front left (Part #51326746100).
- Which models use the hardware listed in this Door window lifting mechanism front?
- The hardware and components featured in the Door window lifting mechanism front are specific to the 2.5CS-3.0CSL 2800CS produced during 1971. These technical specifications ensure that parts like the Window lifter front left (51326746100) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism front assembly?
- Each item in the Door window lifting mechanism front corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2800CS, you can identify the Window lifter front left by locating its position on the schematic, which then links to the official BMW part number 51326746100 for the Vehicle trim section.
