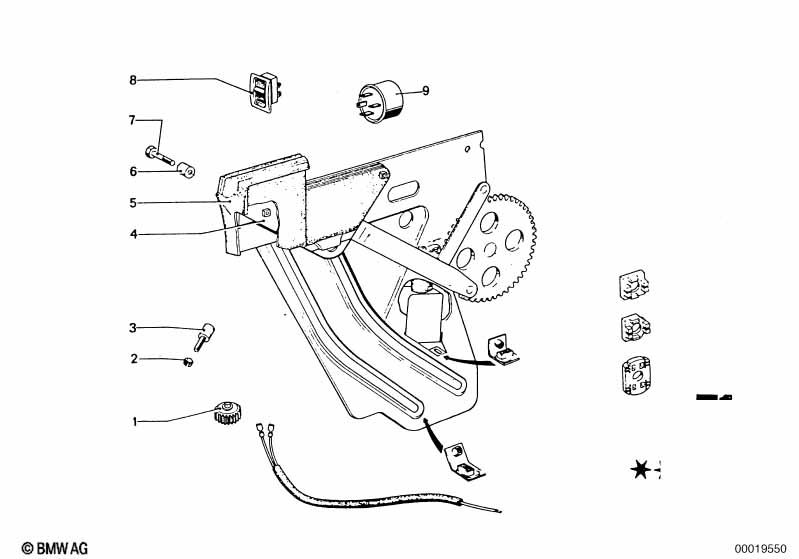

Window guide, rear for BMW 2.5CS-3.0CSL 3.0CSi (1975)
This Window guide, rear technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pinion for manual lifting | 2 | 51338745163 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex nut | M6-8 CR | 2 | 07119922050 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Bump stop | 2 | 51378545198 | $9.30 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 51371810309 | ENDED | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 51371810310 | ENDED | Shop at ECS Tuning | |||||
| 05 | Gasket | 1 | 51367740107 | $97.94 | Shop at ECS Tuning | |||||
| 05 | Gasket | 1 | 51367740108 | $97.94 | Shop at ECS Tuning | |||||
| 06 | Bush | 4 | 11367740109 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSi Window guide, rear?
- This technical diagram illustrates the Window guide, rear within the Vehicle trim group for the 2.5CS-3.0CSL 3.0CSi produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Pinion for manual lifting (Part #51338745163).
- Which models use the hardware listed in this Window guide, rear?
- The hardware and components featured in the Window guide, rear are specific to the 2.5CS-3.0CSL 3.0CSi produced during 1975. These technical specifications ensure that parts like the Pinion for manual lifting (51338745163) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Window guide, rear assembly?
- Each item in the Window guide, rear corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSi, you can identify the Pinion for manual lifting by locating its position on the schematic, which then links to the official BMW part number 51338745163 for the Vehicle trim section.
