Interior trims and panels for BMW 2.5CS-3.0CSL 3.0CSi (1975)

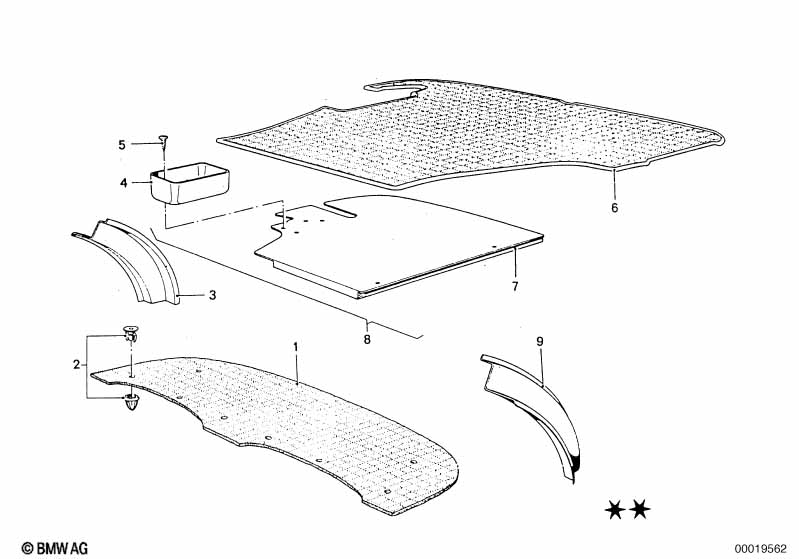

This Interior trims and panels technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 51461835076 | ENDED | Shop at ECS Tuning | |||||
| 02 | Clamp | 9 | 51411808209 | $1.16 | Shop at ECS Tuning | |||||
| 05 | Recessed oval head sheet-metal screw | B3,5X9,5 | 3 | 07119902580 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSi Interior trims and panels?
- This technical diagram illustrates the Interior trims and panels within the Vehicle trim group for the 2.5CS-3.0CSL 3.0CSi produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #51461835076).
- Which models use the hardware listed in this Interior trims and panels?
- The hardware and components featured in the Interior trims and panels are specific to the 2.5CS-3.0CSL 3.0CSi produced during 1975. These technical specifications ensure that parts like the Cover (51461835076) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior trims and panels assembly?
- Each item in the Interior trims and panels corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSi, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 51461835076 for the Vehicle trim section.
