Sound insulation for BMW 2.5CS-3.0CSL 3.0CS (1973)

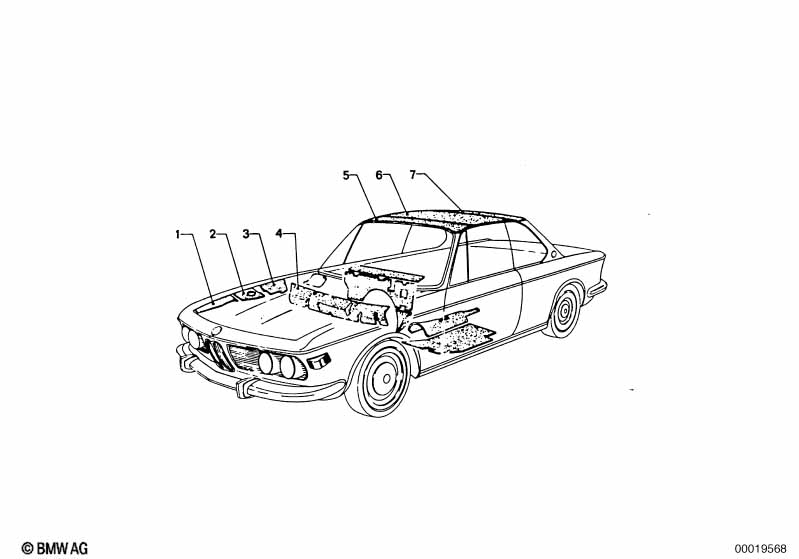

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering left | 1 | 51481811693 | ENDED | Shop at ECS Tuning | |||||
| 01 | Covering right | 1 | 51481811694 | ENDED | Shop at ECS Tuning | |||||
| 02 | Covering left | 1 | 51481811697 | ENDED | Shop at ECS Tuning | |||||
| 02 | Covering right | 1 | 51481811698 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering left | 1 | 51481811695 | ENDED | Shop at ECS Tuning | |||||
| 03 | Covering right | 1 | 51481811696 | ENDED | Shop at ECS Tuning | |||||
| 04 | Sound insulation | 1 | 51481810724 | $270.65 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulation | 1 | 12/1968 | 11/1975 | 51481825535 | ENDED | Shop at ECS Tuning | |||
| 06 | Sound insulation | 1 | 51481825536 | ENDED | Shop at ECS Tuning | |||||
| 07 | Sound insulation | 1 | 51481825537 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Sound insulation?
- This technical diagram illustrates the Sound insulation within the Vehicle trim group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Covering left (Part #51481811693).
- Which models use the hardware listed in this Sound insulation?
- The hardware and components featured in the Sound insulation are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the Covering left (51481811693) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulation assembly?
- Each item in the Sound insulation corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the Covering left by locating its position on the schematic, which then links to the official BMW part number 51481811693 for the Vehicle trim section.
