Bumper, front for BMW 2500-3.3Li 3.0L (1977)

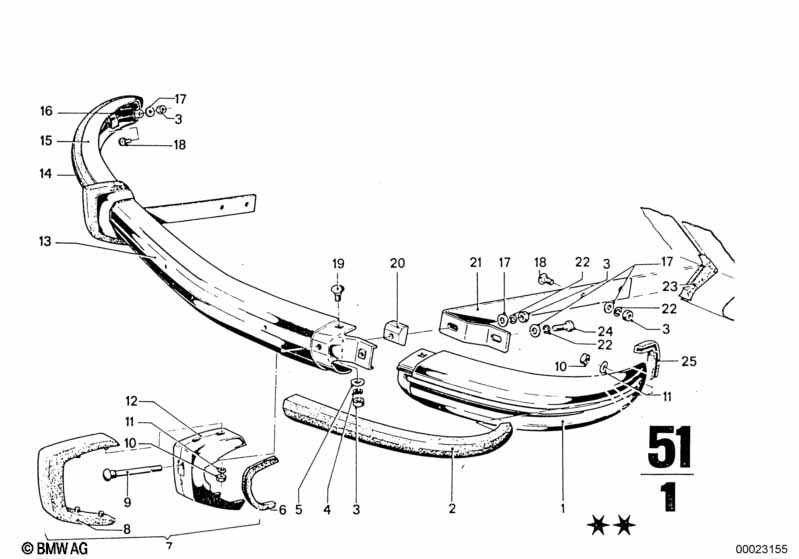

This Bumper, front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper, front left | 1 | 51111800023 | $279.16 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber strip left | LINKS | 1 | 08/1968 | 02/1977 | 51111829493 | $34.22 | Shop at ECS Tuning | ||
| 03 | Hex nut | M8-8-ZNS3 | 10 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 03 | Hex nut | M8-8-ZNNIV SI | 10 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Washer | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 06 | Synthetic strip | SCHWARZ | X | 51111808420 | $5.46 | ENDED | Shop at ECS Tuning | |||
| 08 | Rubber buffer | LINKS | 1 | 08/1968 | 02/1977 | 51111801519 | $37.56 | ENDED | Shop at ECS Tuning | |
| 08 | Rubber buffer | RECHTS | 1 | 08/1968 | 02/1977 | 51111801520 | $37.56 | ENDED | Shop at ECS Tuning | |
| 09 | Saucer-head screw | M8X100 | 2 | 07119910484 | $1.86 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-8-ZNNIV SI | 12 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-ZNNIV SI | 12 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Bumper over-rider | LINKS | 1 | 51111800083 | $92.52 | Shop at ECS Tuning | ||||
| 12 | Bumper over-rider | RECHTS | 1 | 51111800084 | $74.21 | Shop at ECS Tuning | ||||
| 13 | Bumper front center | 1 | 51111800019 | $225.43 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rubber strip right | RECHTS | 1 | 51111829494 | $56.33 | Shop at ECS Tuning | ||||
| 15 | Bumper front right | 1 | 08/1968 | 02/1977 | 51111800024 | $252.22 | ENDED | Shop at ECS Tuning | ||
| 16 | Rubber washer | 2 | 51125071765 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 17 | Washer | 8,4X24X2-ZNS3 | 10 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 18 | Saucer-head screw | M8X25 | 6 | 07119910447 | $0.32 | Shop at ECS Tuning | ||||
| 19 | Saucer-head screw | M8X16 | 4 | 07119910433 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Spacer sleeve | 1 | 51111800021 | ENDED | Shop at ECS Tuning | |||||
| 20 | Spacer sleeve | 1 | 51111800022 | ENDED | Shop at ECS Tuning | |||||
| 21 | Spring clip | 2 | 51111800143 | $15.93 | ENDED | Shop at ECS Tuning | ||||
| 22 | Spring washer | B8 | 6 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 23 | Bushing | LINKS | 1 | 51111802067 | $17.16 | ENDED | Shop at ECS Tuning | |||
| 23 | Bushing | RECHTS | 1 | 51111802068 | $17.16 | Shop at ECS Tuning | ||||
| 24 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
