Moldings for BMW 2500-3.3Li 3.3Li (1977)

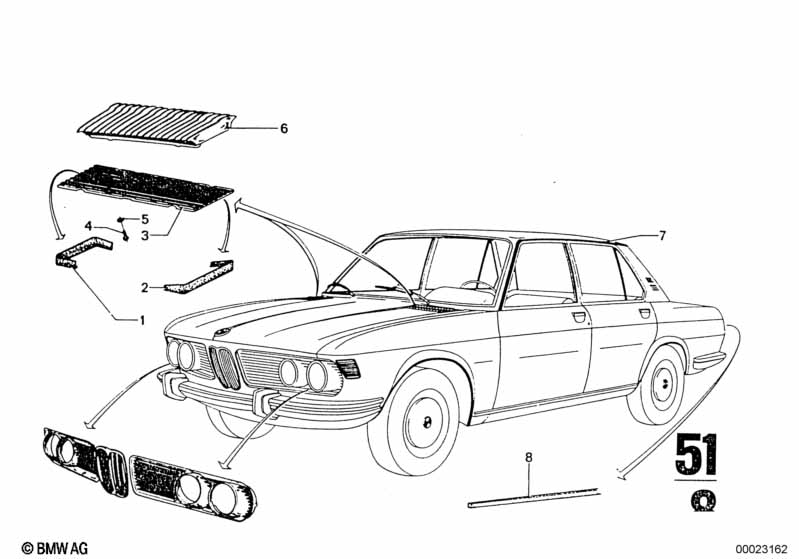

This Moldings technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Padding | 1 | 51131807153 | ENDED | Shop at ECS Tuning | |||||
| 01 | Padding | 1 | 51131807154 | $2.84 | Shop at ECS Tuning | |||||
| 02 | Padding | 1 | 51131807151 | ENDED | Shop at ECS Tuning | |||||
| 02 | Padding | 1 | 51131807152 | $2.84 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 51131807837 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 51131807838 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST2,9X9,5 | 8 | 07119907707 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Set flat washer 20 | A3,2 | 8 | 07509064018 | ENDED | Shop at ECS Tuning | ||||
| 08 | sealing | X | 51131805493 | $2.73 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Moldings?
- This technical diagram illustrates the Moldings within the Vehicle trim group for the 2500-3.3Li 3.3Li produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Padding (Part #51131807153).
- Which models use the hardware listed in this Moldings?
- The hardware and components featured in the Moldings are specific to the 2500-3.3Li 3.3Li produced during 1977. These technical specifications ensure that parts like the Padding (51131807153) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Moldings assembly?
- Each item in the Moldings corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Padding by locating its position on the schematic, which then links to the official BMW part number 51131807153 for the Vehicle trim section.
