Moldings for BMW 2500-3.3Li 3.0Si (1973)

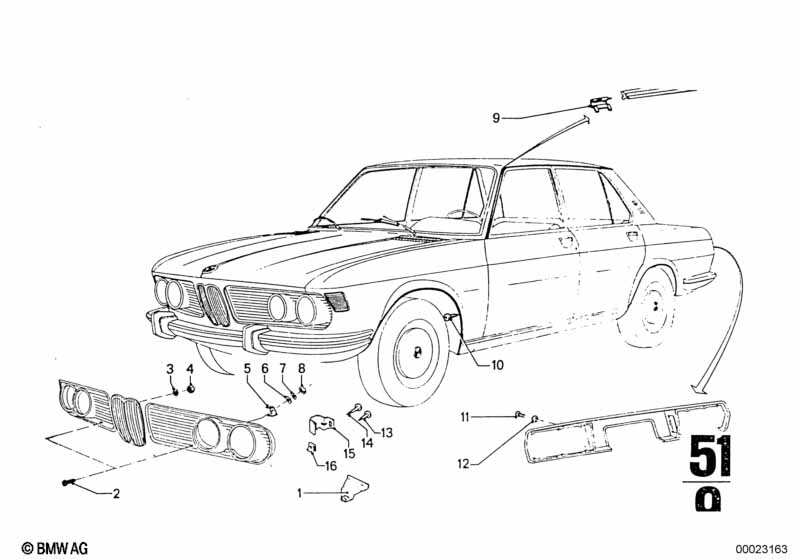

This Moldings technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket | 1 | 51131806911 | $4.85 | ENDED | Shop at ECS Tuning | ||||
| 02 | Recessed oval head sheet-metal screw | ST3,9X13 | 10 | 07119902459 | $1.55 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Set spring washer 50 | B4 | 7 | 07509063158 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support | 2 | 51141804918 | $0.73 | ENDED | Shop at ECS Tuning | ||||
| 07 | Set spring washer 50 | B4 | 2 | 07509063158 | ENDED | Shop at ECS Tuning | ||||
| 08 | Set nut 25 | M4 | 2 | 07509064279 | ENDED | Shop at ECS Tuning | ||||
| 09 | Clamp | 8 | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | ST2,9X6,5 | 2 | 07119907701 | $1.91 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M4X10-4.8-H | 3 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 13 | Set fillister head self-tapping screw 20 | ST3,9X19 | 10 | 07509063296 | ENDED | Shop at ECS Tuning | ||||
| 14 | Set fillister head self-tapping screw 20 | ST3,9X25 | 2 | 07509064382 | ENDED | Shop at ECS Tuning | ||||
| 15 | Support | 2 | 41331808574 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 16 | Set body nut 25 | B3,9 | 10 | 07509063360 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Moldings?
- This technical diagram illustrates the Moldings within the Vehicle trim group for the 2500-3.3Li 3.0Si produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Bracket (Part #51131806911).
- Which models use the hardware listed in this Moldings?
- The hardware and components featured in the Moldings are specific to the 2500-3.3Li 3.0Si produced during 1973. These technical specifications ensure that parts like the Bracket (51131806911) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Moldings assembly?
- Each item in the Moldings corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Bracket by locating its position on the schematic, which then links to the official BMW part number 51131806911 for the Vehicle trim section.
