Moldings for BMW 2500-3.3Li 2800 (1973)

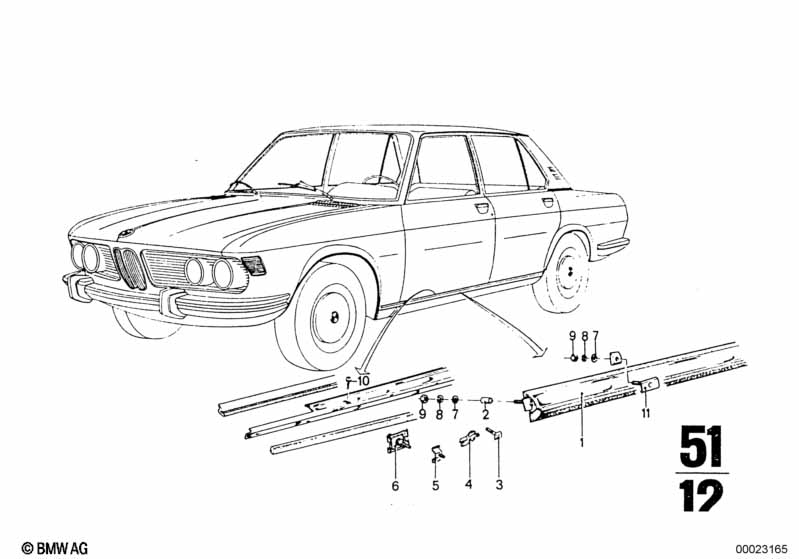

This Moldings technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulding rocker panel left | 40 MM | 1 | 08/1968 | 02/1977 | 51131807157 | $122.76 | ENDED | Shop at ECS Tuning | |
| 01 | Moulding rocker panel right | 40 MM | 1 | 08/1968 | 02/1977 | 51131807158 | ENDED | Shop at ECS Tuning | ||
| 02 | Bush | 2 | 51131807882 | $3.17 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fastener | 4X26 | 2 | 51131808555 | $4.33 | Shop at ECS Tuning | ||||
| 04 | Clip | 18 | 08/1968 | 02/1977 | 51131807716 | $2.39 | Shop at ECS Tuning | |||
| 05 | Fastener | 2 | 04/1969 | 02/1977 | 51131807670 | $1.74 | Shop at ECS Tuning | |||
| 07 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 08 | Spring washer | B4 | 2 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M4-A2-70 | 2 | 07119922854 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
