Mirror for BMW 2.5CS-3.0CSL 2.5CS (1975)

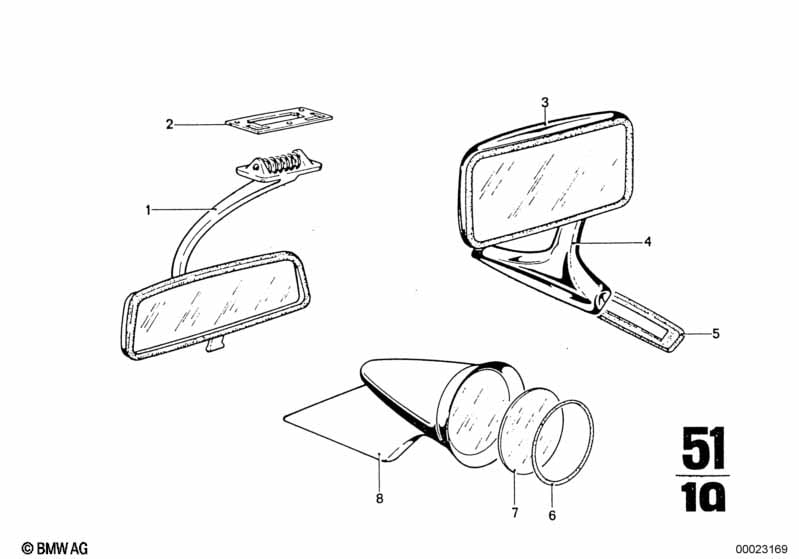

This Mirror technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior rear-view mirror | 1 | 51161817122 | $112.54 | ENDED | Shop at ECS Tuning | ||||
| 02 | Base plate | 1 | 51161811468 | ENDED | Shop at ECS Tuning | |||||
| 03 | Exterior mirror left | TRAPEZ | 1 | 08/1968 | 12/1975 | 51161804452 | $202.45 | Shop at ECS Tuning | ||
| 03 | Exterior mirror right | TRAPEZ | 1 | 08/1968 | 12/1975 | 51161807702 | $202.45 | Shop at ECS Tuning | ||
| 05 | Seal seft | 1 | 51161822061 | $12.09 | Shop at ECS Tuning | |||||
| 05 | Seal right | 1 | 51161822062 | $12.09 | Shop at ECS Tuning | |||||
| 08 | Outside mirror | TALBOT | 1 | 51167766014 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Mirror?
- This technical diagram illustrates the Mirror within the Vehicle trim group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Interior rear-view mirror (Part #51161817122).
- Which models use the hardware listed in this Mirror?
- The hardware and components featured in the Mirror are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Interior rear-view mirror (51161817122) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mirror assembly?
- Each item in the Mirror corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Interior rear-view mirror by locating its position on the schematic, which then links to the official BMW part number 51161817122 for the Vehicle trim section.
