Electr. exterior mirror for BMW 2500-3.3Li 3.0Si (1977)

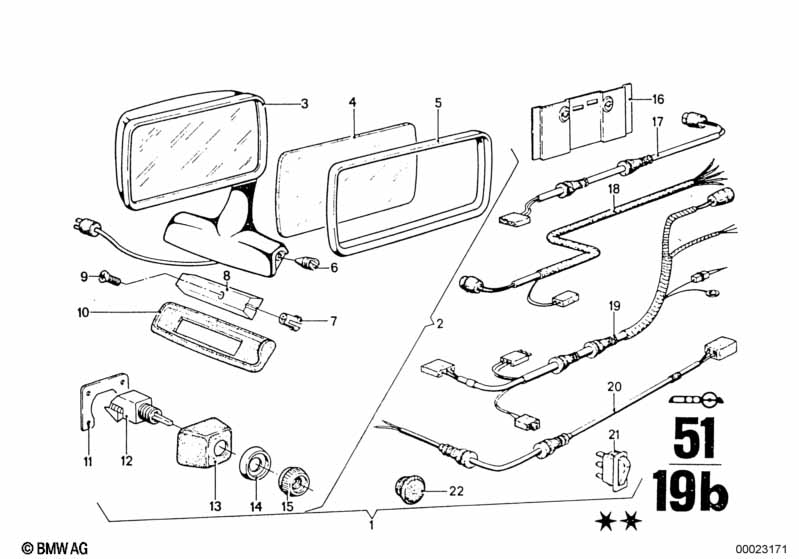

This Electr. exterior mirror technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Fg -> 2430662/ 2500rl, 2470635/ 2500a Rl 2171028/ 3.0sa Rl, 34495003/ 3.3l Rl, 3 95218/ 3.3la Rl |
|||||||||
| 02 | Electr. door mirror with switch, right | 1 | 51161834392 | ENDED | Shop at ECS Tuning | |||||
| Special accessories | ||||||||||
| 02 | Electr.exterior mirror left | 1 | 51161841009 | ENDED | Shop at ECS Tuning | |||||
| 03 | Electr.exterior mirror right | 1 | 51161846378 | $359.35 | ENDED | Shop at ECS Tuning | ||||
| Special accessories | ||||||||||
| 03 | Electr.exterior mirror left | 1 | 51161846379 | $330.34 | ENDED | Shop at ECS Tuning | ||||
| 04 | Mirror glass (co-driver's side) | 1 | 51161836187 | $24.55 | Shop at ECS Tuning | |||||
| 04 | Mirror glass (driver's side) | 1 | 51161840049 | $19.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Glass holding frame outer | 1 | 51161827186 | $90.40 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grub screw | 1 | 51161808536 | $2.16 | ENDED | Shop at ECS Tuning | ||||
| 06 | Grub screw | 1 | 51161845083 | $0.88 | Shop at ECS Tuning | |||||
| 07 | Nut | M4 | 1 | 07129925804 | $1.09 | ENDED | Shop at ECS Tuning | |||
| 08 | Mirror holder | 1 | 51161827207 | $12.09 | ENDED | Shop at ECS Tuning | ||||
| 09 | Csk.fillister head srew | M4X20 | 1 | 07119928439 | $2.87 | Shop at ECS Tuning | ||||
| 10 | Seal right | 1 | 51161833196 | $4.63 | Shop at ECS Tuning | |||||
| 11 | Base | 1 | 51411827187 | $1.64 | ENDED | Shop at ECS Tuning | ||||
| 12 | Switch electr. exterior mirror | 1 | 61311358626 | $170.39 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cap | 1 | 51411827175 | ENDED | Shop at ECS Tuning | |||||
| 14 | Trim ring | 1 | 51161827204 | $3.96 | Shop at ECS Tuning | |||||
| 15 | Trim ring | 1 | 61311358688 | ENDED | Shop at ECS Tuning | |||||
| 16 | Reinforcement | 1 | 51161841389 | $2.44 | Shop at ECS Tuning | |||||
| 17 | Cable | 1 | 61121360801 | $12.61 | Shop at ECS Tuning | |||||
| 18 | Cable | 1 | 61121359922 | ENDED | Shop at ECS Tuning | |||||
| 19 | Cable | 1 | 61121362109 | $55.52 | ENDED | Shop at ECS Tuning | ||||
| 21 | Switch additional mirror | 1 | 61311360778 | $17.78 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Electr. exterior mirror?
- This technical diagram illustrates the Electr. exterior mirror within the Vehicle trim group for the 2500-3.3Li 3.0Si produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Electr. door mirror with switch, right (Part #51161834392).
- Which models use the hardware listed in this Electr. exterior mirror?
- The hardware and components featured in the Electr. exterior mirror are specific to the 2500-3.3Li 3.0Si produced during 1977. These technical specifications ensure that parts like the Electr. door mirror with switch, right (51161834392) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electr. exterior mirror assembly?
- Each item in the Electr. exterior mirror corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Electr. door mirror with switch, right by locating its position on the schematic, which then links to the official BMW part number 51161834392 for the Vehicle trim section.
