Sun visor for BMW 2500-3.3Li 3.0Si (1976)

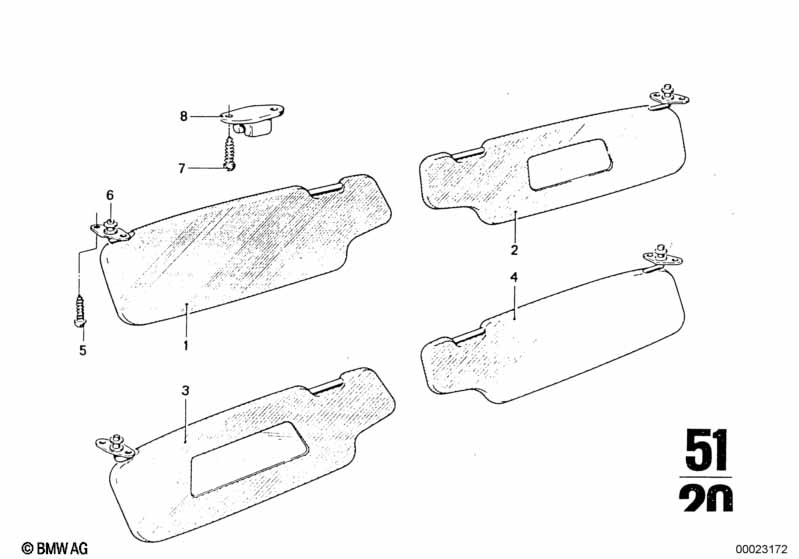

This Sun visor technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left sun visor | 1 | 08/1968 | 02/1977 | 51161850491 | $87.24 | ENDED | Shop at ECS Tuning | ||
| 02 | Right sun visor | 1 | 08/1968 | 02/1977 | 51161850494 | $111.04 | ENDED | Shop at ECS Tuning | ||
| 05 | Recessed oval head sheet-metal screw | ST4,8X19 | 4 | 07119902483 | $1.64 | Shop at ECS Tuning | ||||
| 06 | Bracket left | 1 | 51161816015 | $16.17 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket right | 1 | 51161816016 | $16.17 | ENDED | Shop at ECS Tuning | ||||
| 08 | Holder | ELFENBEIN | 2 | 51161870863 | $4.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Sun visor?
- This technical diagram illustrates the Sun visor within the Vehicle trim group for the 2500-3.3Li 3.0Si produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Left sun visor (Part #51161850491).
- Which models use the hardware listed in this Sun visor?
- The hardware and components featured in the Sun visor are specific to the 2500-3.3Li 3.0Si produced during 1976. These technical specifications ensure that parts like the Left sun visor (51161850491) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sun visor assembly?
- Each item in the Sun visor corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Left sun visor by locating its position on the schematic, which then links to the official BMW part number 51161850491 for the Vehicle trim section.
