Handle for BMW 2500-3.3Li 3.0Si (1976)

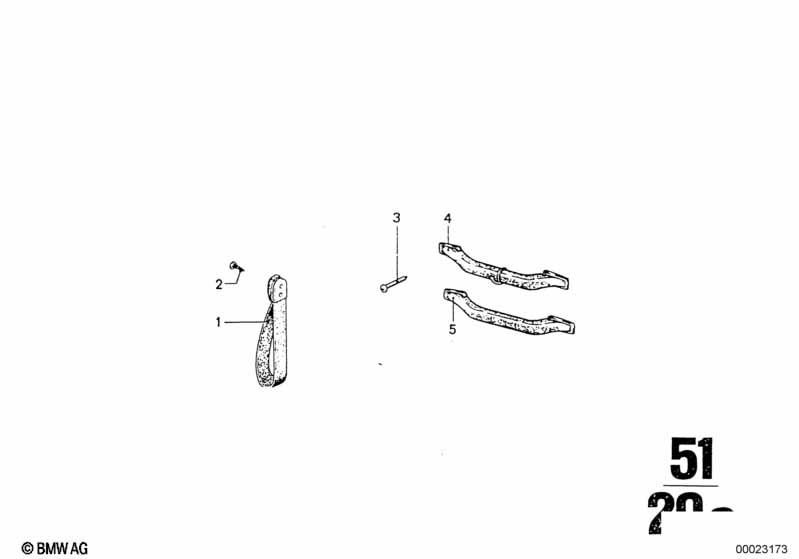

This Handle technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grab strap | 2 | 08/1968 | 02/1977 | 51169558273 | $20.36 | ENDED | Shop at ECS Tuning | ||
| 02 | Recessed oval head sheet-metal screw | ST4,2X19 | 4 | 08/1968 | 02/1977 | 07119902468 | $0.11 | Shop at ECS Tuning | ||
| 03 | Fillister head self-tapping screw | ST4,8X13 | 12 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Handle | 2 | 51161853632 | $32.09 | ENDED | Shop at ECS Tuning | ||||
| 05 | Handle | 1 | 51161853632 | $32.09 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Handle?
- This technical diagram illustrates the Handle within the Vehicle trim group for the 2500-3.3Li 3.0Si produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Grab strap (Part #51169558273).
- Which models use the hardware listed in this Handle?
- The hardware and components featured in the Handle are specific to the 2500-3.3Li 3.0Si produced during 1976. These technical specifications ensure that parts like the Grab strap (51169558273) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Handle assembly?
- Each item in the Handle corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Grab strap by locating its position on the schematic, which then links to the official BMW part number 51169558273 for the Vehicle trim section.
