Glove box for BMW 2500-3.3Li 2800 (1975)

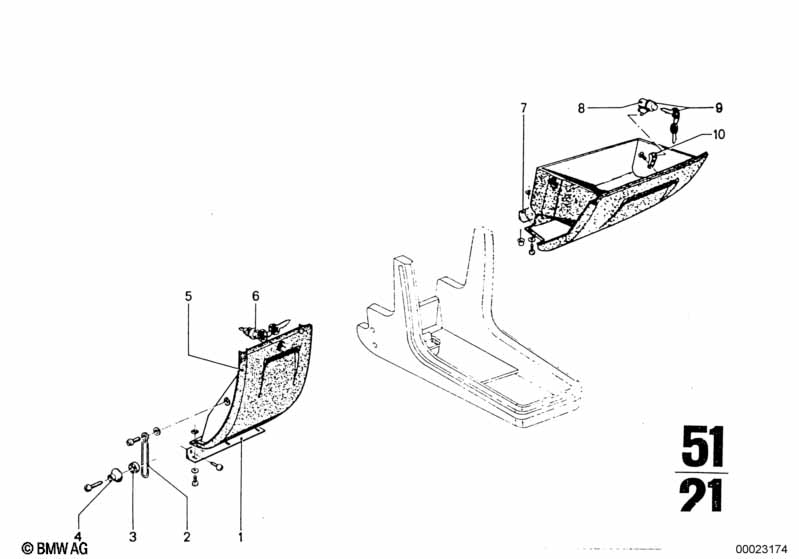

This Glove box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hinge | 1 | 08/1968 | 02/1977 | 51161800659 | ENDED | Shop at ECS Tuning | |||
| 02 | Clip | 3 | 08/1968 | 02/1977 | 51161800578 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | 2 | 51161800577 | ENDED | Shop at ECS Tuning | |||||
| 04 | Ring | 1 | 51161800576 | ENDED | Shop at ECS Tuning | |||||
| Late version | ||||||||||
| 05 | Glove box | 1 | 01/1969 | 02/1977 | 51161823958 | ENDED | Shop at ECS Tuning | |||
| Early version | ||||||||||
| 06 | Catch with key | 1 | 08/1968 | 02/1977 | 51161800638 | $45.80 | ENDED | Shop at ECS Tuning | ||
| Late version | ||||||||||
| 06 | Lock | 1 | 08/1968 | 02/1977 | 51161823947 | $26.00 | ENDED | Shop at ECS Tuning | ||
| 06 | Catch with key | 1 | 08/1968 | 02/1977 | 51161823948 | $43.25 | ENDED | Shop at ECS Tuning | ||
| 07 | Hinge | 1 | 08/1968 | 02/1977 | 51161813261 | $8.82 | ENDED | Shop at ECS Tuning | ||
| 08 | Catch with key | 1 | 51161800548 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lock | 1 | 51161804969 | ENDED | Shop at ECS Tuning | |||||
| 09 | Catch with key | 1 | 51161800548 | ENDED | Shop at ECS Tuning | |||||
| 10 | Notch | 1 | 08/1968 | 02/1977 | 51161804062 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
