Glove box for BMW 2500-3.3Li 3.0S (1974)

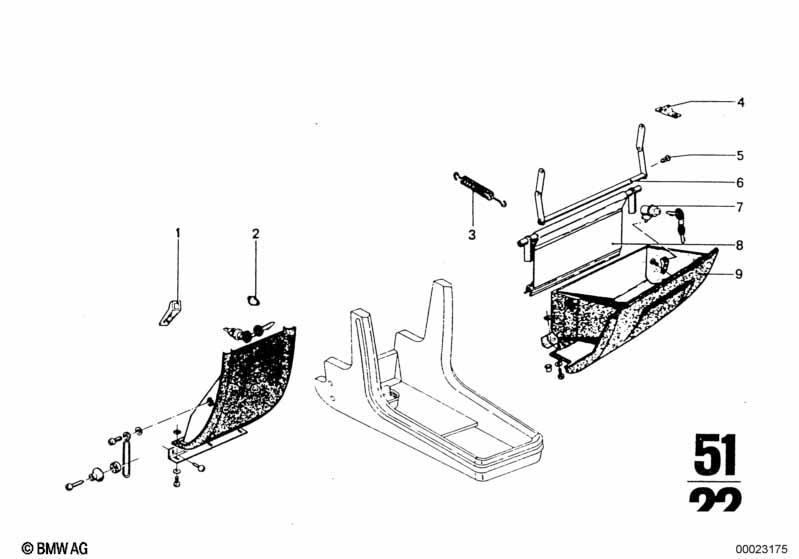

This Glove box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Notch | 1 | 08/1968 | 02/1977 | 51161823949 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber buffer | 1 | 08/1968 | 02/1977 | 51175790035 | $5.97 | ENDED | Shop at ECS Tuning | ||
| 03 | Spring | 1 | 08/1968 | 02/1977 | 51161805586 | $1.80 | ENDED | Shop at ECS Tuning | ||
| 04 | Suspension right | 1 | 08/1968 | 02/1977 | 51161805566 | ENDED | Shop at ECS Tuning | |||
| 05 | Suspension left | 1 | 08/1968 | 02/1977 | 51161805570 | ENDED | Shop at ECS Tuning | |||
| 06 | Joint link | 1 | 08/1968 | 02/1977 | 51161805576 | ENDED | Shop at ECS Tuning | |||
| 07 | Catch with code | 1 | 51161809929 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 51161813724 | ENDED | Shop at ECS Tuning | |||||
| 09 | Glove box | 1 | 08/1968 | 02/1977 | 51161816812 | $195.09 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Glove box?
- This technical diagram illustrates the Glove box within the Vehicle trim group for the 2500-3.3Li 3.0S produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Notch (Part #51161823949).
- Which models use the hardware listed in this Glove box?
- The hardware and components featured in the Glove box are specific to the 2500-3.3Li 3.0S produced during 1974. These technical specifications ensure that parts like the Notch (51161823949) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box assembly?
- Each item in the Glove box corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Notch by locating its position on the schematic, which then links to the official BMW part number 51161823949 for the Vehicle trim section.
