Glove box for BMW 2500-3.3Li 3.0Si (1973)

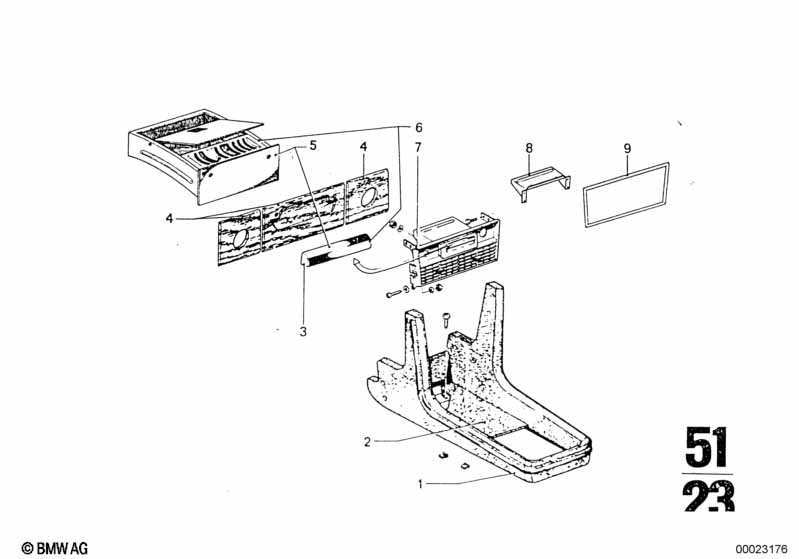

This Glove box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Storing partition | 1 | 05/1971 | 02/1977 | 51161821804 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Depositing box bottom panel | X | 05/1971 | 02/1977 | 51161829804 | ENDED | Shop at ECS Tuning | |||
| 02 | Depositing box bottom panel | 1 | 06/1969 | 02/1977 | 51161805761 | ENDED | Shop at ECS Tuning | |||
| 02 | Depositing box bottom panel | 1 | 09/1973 | 02/1977 | 51161829407 | ENDED | Shop at ECS Tuning | |||
| 03 | Handle | 1 | 51161807520 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cover | NUSSBAUM | 1 | 08/1968 | 02/1977 | 51161821475 | $41.08 | ENDED | Shop at ECS Tuning | |
| 05 | Ashtray | 1 | 08/1968 | 02/1977 | 51161816984 | $33.70 | ENDED | Shop at ECS Tuning | ||
| 07 | Cover | 1 | 08/1968 | 02/1977 | 51161801561 | $360.47 | ENDED | Shop at ECS Tuning | ||
| 08 | Bracket | 1 | 51161801584 | ENDED | Shop at ECS Tuning | |||||
| 09 | Finisher | 1 | 05/1971 | 02/1977 | 51161806092 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
