Door trim panel, front for BMW 2500-3.3Li 3.0S (1977)

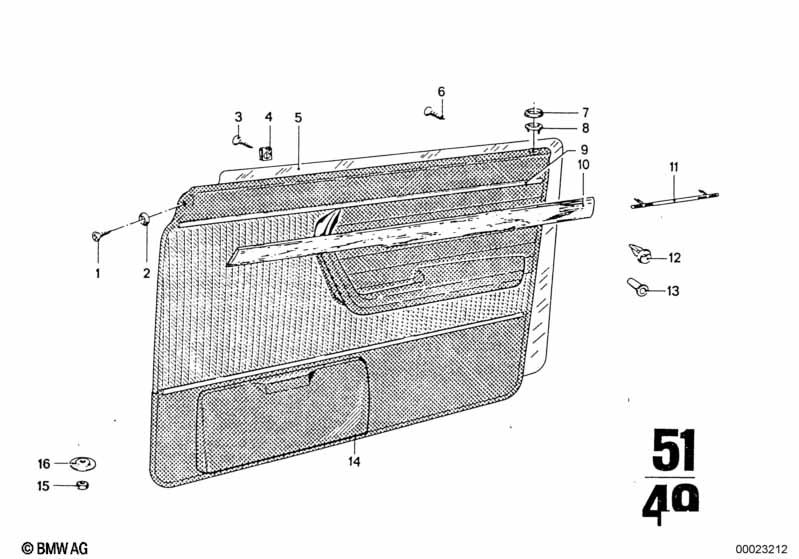

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Recessed oval head sheet-metal screw | ST2,9X13 | 4 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 02 | Hollow washer | 4 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | 0000000000 | 6 | 07119907759 | ENDED | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Grommet | 2 | 51226654104 | ENDED | Shop at ECS Tuning | |||||
| 12 | Clamp | 26 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 13 | Clamp | 12 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 14 | Door pocket | SCHWARZ | 2 | 51411805525 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex nut | M4-A2-70 | 10 | 07119922854 | Shop at ECS Tuning | |||||
| 16 | Washer | 10 | 51411805353 | $0.18 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Recessed oval head sheet-metal screw (Part #07119902412).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Recessed oval head sheet-metal screw (07119902412) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Recessed oval head sheet-metal screw by locating its position on the schematic, which then links to the official BMW part number 07119902412 for the Vehicle trim section.
