Door trim, rear for BMW 2500-3.3Li 2500 (1971)

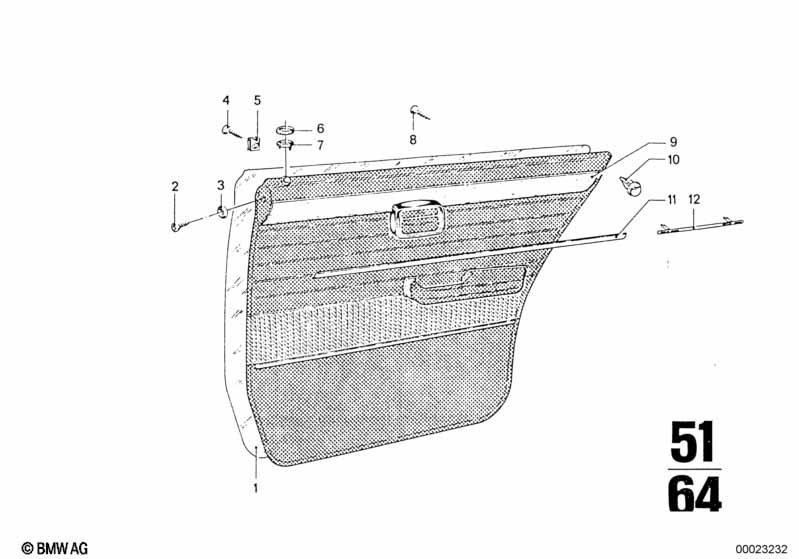

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trimming foil | B=1520MM | X | 51951924961 | $40.98 | Shop at ECS Tuning | ||||
| 02 | Recessed oval head sheet-metal screw | ST2,9X13 | 4 | 07119902412 | $1.30 | Shop at ECS Tuning | ||||
| 03 | Hollow washer | 4 | 08/1968 | 02/1977 | 51187680093 | $0.23 | ENDED | Shop at ECS Tuning | ||
| 05 | Body nut | ST 4,8-6-ZNS3 | 2 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Grommet | 2 | 08/1968 | 02/1977 | 51226654104 | ENDED | Shop at ECS Tuning | |||
| 07 | Bush | 2 | 08/1968 | 02/1977 | 51411820874 | $1.47 | Shop at ECS Tuning | |||
| 08 | Sheet metal screw | 0000000000 | 4 | 07119907759 | ENDED | Shop at ECS Tuning | ||||
| 10 | Clamp | 22 | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
| 11 | Decorative strip | 1 | 08/1968 | 02/1977 | 51421802741 | ENDED | Shop at ECS Tuning | |||
| 11 | Decorative strip | 1 | 08/1968 | 02/1977 | 51421802742 | ENDED | Shop at ECS Tuning | |||
| 12 | Terminal strip | 6 | 08/1968 | 02/1977 | 51417061755 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
