Upholstery materials, vinyl, leather for BMW 2.5CS-3.0CSL 3.0CSi (1975)

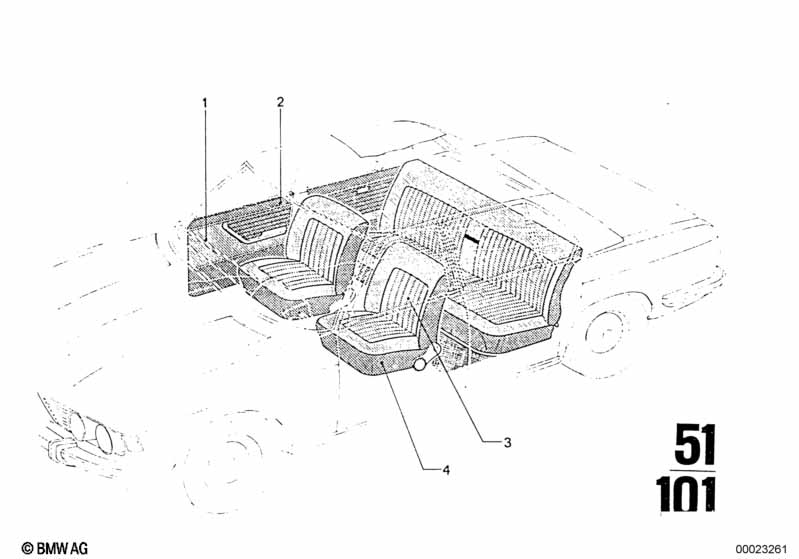

This Upholstery materials, vinyl, leather technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vinyl lining grained | SCHWARZ | X | 51921802124 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vinyl lining grained | MARINEBLAU | X | 51921804119 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vinyl lining grained | GOLDBRAUN | X | 51921804121 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vinyl lining grained | NYLONBRAUN | X | 51921822082 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vinyl lining grained | BEIGE | X | 51941827309 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vinyl lining smooth | GOLDBRAUN | X | 51921804144 | $63.11 | ENDED | Shop at ECS Tuning | |||
| 02 | Vinyl lining smooth | NYLONBRAUN | X | 51921822081 | $60.82 | Shop at ECS Tuning | ||||
| 02 | Vinyl lining smooth | HELLGRAU | X | 51921828188 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vinyl lining smooth | SCHWARZ/1300MM | X | 51921905497 | $55.33 | Shop at ECS Tuning | ||||
| 02 | Vinyl lining smooth | MARINEBLAU | X | 51927659226 | $38.92 | Shop at ECS Tuning | ||||
| 02 | Vinyl lining smooth | BEIGE | X | 51941827307 | $47.71 | ENDED | Shop at ECS Tuning | |||
| 03 | Upholstery cover, vinyl | X | 51921801990 | ENDED | Shop at ECS Tuning | |||||
| 03 | Upholstery imitation leathear | 08 | X | 51921806006 | ENDED | Shop at ECS Tuning | ||||
| 03 | Upholstery vinyl marineblau | 49 | X | 51921806007 | ENDED | Shop at ECS Tuning | ||||
| 04 | Upholstery vinyl nylonbraun | X | 51921804143 | $43.80 | ENDED | Shop at ECS Tuning | ||||
| 04 | Upholstery vinyl nylonbraun | 0007/0052 | X | 51921822079 | $49.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Upholstery vinyl schwarz | 0005/0050/0257 | X | 51921905498 | $53.85 | ENDED | Shop at ECS Tuning | |||
| 04 | Upholstery vinyl marineblau | 0006/0051 | X | 51927659251 | ENDED | Shop at ECS Tuning | ||||
| 04 | Vinyl lining smooth | ENGL.SATTELLED. | X | 51927659264 | ENDED | Shop at ECS Tuning | ||||
| 04 | Vinyl lining smooth | TABAKBRAUN | X | 51941846192 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
