Glove box for BMW 2500-3.3Li 3.0S (1977)

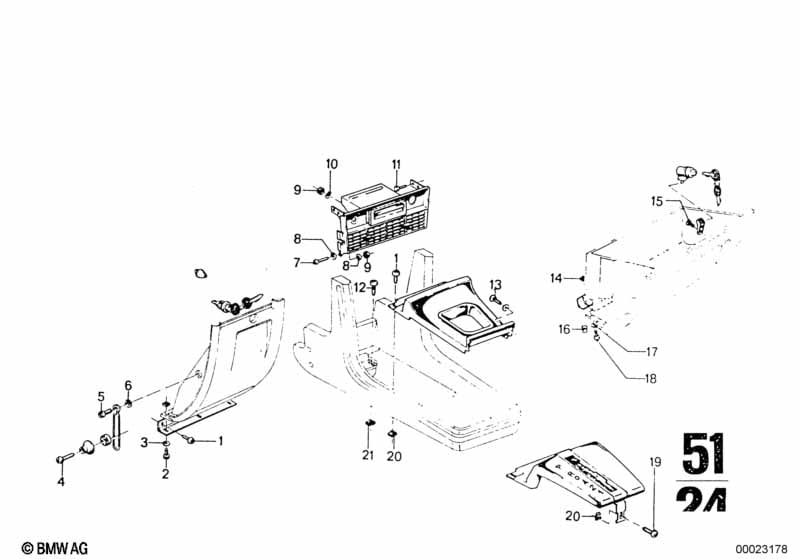

This Glove box technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister head self-tapping screw | ST4,2X9,5 | 7 | 07119907741 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | AM6,5X32 | 1 | 07119901245 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Csk.fillister head srew | M4X30 | 4 | 07119928454 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M4-A2-70 | 6 | 07119922854 | Shop at ECS Tuning | |||||
| 10 | Wave washer | B4 | 4 | 07119932030 | $0.51 | Shop at ECS Tuning | ||||
| 11 | Sheet metal screw | ST4,8X16-U1-C- | 4 | 07119901295 | Shop at ECS Tuning | |||||
| 12 | Set fillister head self-tapping screw 20 | ST4,8X25 | 3 | 07509063298 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rivet | 3,2-5A | 4 | 07129948740 | ENDED | Shop at ECS Tuning | ||||
| 17 | Washer | 9X4,3X0,8-200HV | 4 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 21 | Body nut | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Glove box?
- This technical diagram illustrates the Glove box within the Vehicle trim group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Fillister head self-tapping screw (Part #07119907741).
- Which models use the hardware listed in this Glove box?
- The hardware and components featured in the Glove box are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Fillister head self-tapping screw (07119907741) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box assembly?
- Each item in the Glove box corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Fillister head self-tapping screw by locating its position on the schematic, which then links to the official BMW part number 07119907741 for the Vehicle trim section.
