Registration plate mounting for BMW 2500-3.3Li 2500 (1971)

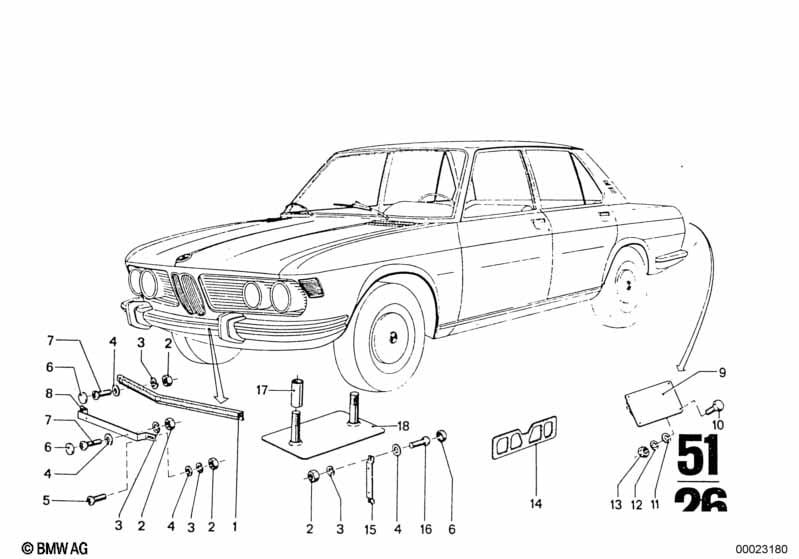

This Registration plate mounting technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base | 1 | 08/1968 | 02/1977 | 51181800439 | ENDED | Shop at ECS Tuning | |||
| 01 | Base | 1 | 08/1968 | 02/1977 | 51115470019 | $50.54 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 03 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Covering cap | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 06 | Covering cap | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 07 | Screw | 4 | 51181813014 | $0.28 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 09 | Base | 1 | 08/1968 | 02/1977 | 51181808579 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 08/1968 | 02/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 11 | Washer | A6,4-ZNNIV SI | 2 | 08/1968 | 02/1977 | 07119904202 | Shop at ECS Tuning | |||
| 12 | Spring washer | B6 | 2 | 08/1968 | 02/1977 | 07119933082 | $0.09 | Shop at ECS Tuning | ||
| 13 | Hex nut | M6-8-ZNNIV SI | 2 | 08/1968 | 02/1977 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 14 | Base | 1 | 51181804114 | $18.86 | ENDED | Shop at ECS Tuning | ||||
| 16 | Screw | 2 | 51181813015 | $0.27 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
