Door window for BMW 2500-3.3Li 2800Bav (1971)

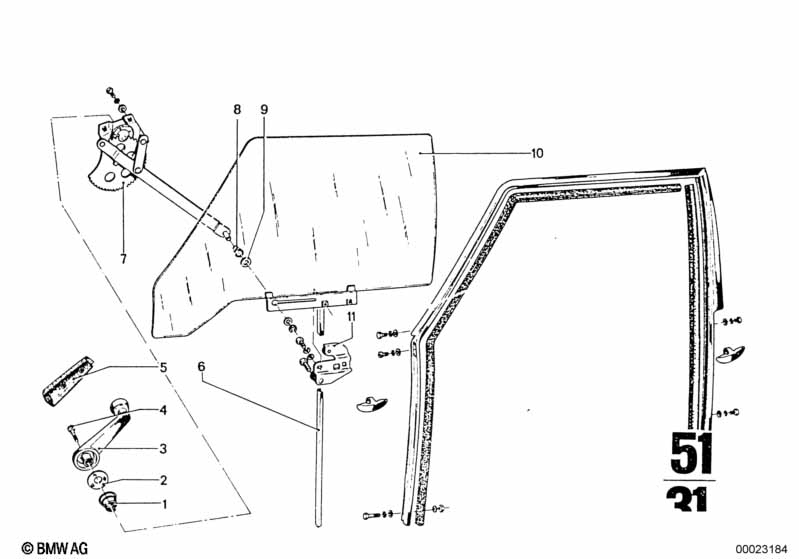

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conical spring | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 02 | Stop disk | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 05 | Window crank | SCHWARZ | 2 | 08/1968 | 02/1977 | 51321875839 | $34.14 | Shop at ECS Tuning | ||
| 06 | Track rail | 2 | 08/1968 | 02/1977 | 51321806913 | $15.40 | ENDED | Shop at ECS Tuning | ||
| 06 | Track rail | 2 | 08/1968 | 02/1977 | 51321806914 | $15.40 | ENDED | Shop at ECS Tuning | ||
| 07 | Window lifter front left | 1 | 08/1968 | 02/1977 | 51321800293 | $65.65 | Shop at ECS Tuning | |||
| 07 | Window lifter front right | 1 | 08/1968 | 02/1977 | 51321800294 | $65.65 | Shop at ECS Tuning | |||
| 08 | Spring | 2 | 51321836322 | $0.58 | Shop at ECS Tuning | |||||
| 10 | Door window green front left | 1 | 51321808797 | $151.20 | Shop at ECS Tuning | |||||
| 10 | Door window green front right | 1 | 51321808798 | $151.20 | Shop at ECS Tuning | |||||
| 10 | Door window clear front left | 1 | 08/1968 | 02/1977 | 51321800697 | $151.20 | Shop at ECS Tuning | |||
| 10 | Door window clear front right | 1 | 08/1968 | 02/1977 | 51321800698 | $154.01 | ENDED | Shop at ECS Tuning | ||
| 11 | Holder | 1 | 51321800193 | $19.83 | ENDED | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 51321800194 | $25.11 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
