Door window for BMW 2500-3.3Li 3.0L (1977)

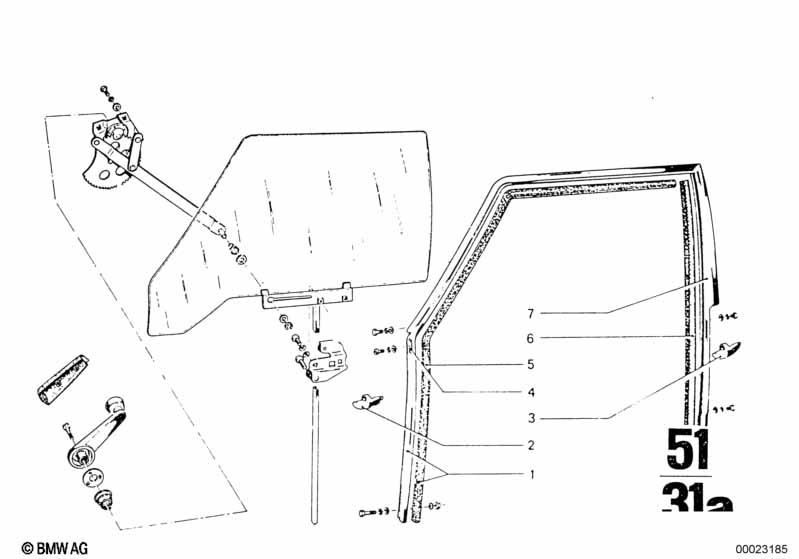

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window frame, front left | 1 | 51321821097 | ENDED | Shop at ECS Tuning | |||||
| 01 | Window frame front right | 1 | 51321821098 | $325.87 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering cap | 2 | 51211804147 | $2.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering cap | 2 | 51211804146 | $2.74 | Shop at ECS Tuning | |||||
| 04 | Lock plate | 2 | 51321803967 | ENDED | Shop at ECS Tuning | |||||
| 05 | Window guide | 2 | 51321800688 | $34.12 | Shop at ECS Tuning | |||||
| 06 | Left One-piece window guide | 1 | 08/1968 | 02/1977 | 51321867897 | $89.55 | Shop at ECS Tuning | |||
| 06 | Right One-piece window guide | 1 | 08/1968 | 02/1977 | 51321867898 | $89.55 | ENDED | Shop at ECS Tuning | ||
| Late version | ||||||||||
| 07 | Window frame, front left | 1 | 08/1968 | 02/1977 | 51321821097 | ENDED | Shop at ECS Tuning | |||
| 07 | Window frame front right | 1 | 08/1968 | 02/1977 | 51321821098 | $325.87 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Door window?
- This technical diagram illustrates the Door window within the Vehicle trim group for the 2500-3.3Li 3.0L produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Window frame, front left (Part #51321821097).
- Which models use the hardware listed in this Door window?
- The hardware and components featured in the Door window are specific to the 2500-3.3Li 3.0L produced during 1977. These technical specifications ensure that parts like the Window frame, front left (51321821097) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window assembly?
- Each item in the Door window corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Window frame, front left by locating its position on the schematic, which then links to the official BMW part number 51321821097 for the Vehicle trim section.
