Door window for BMW 2500-3.3Li 3.0S (1973)

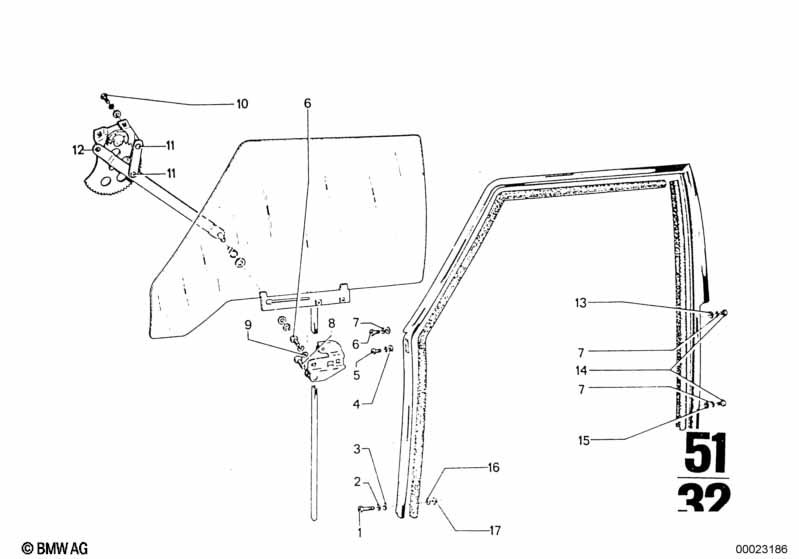

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X30 | 4 | 07119912283 | $0.47 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B6 | 26 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | 6-200 HV-ZNS3 | 12 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 04 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 05 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 8 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B6 | 8 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X16-Z3-2 | 4 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Washer | 6-200 HV-ZNS3 | 12 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X8 | 14 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 11 | Rivet | 4 | 51321829995 | $0.97 | Shop at ECS Tuning | |||||
| 12 | Rivet | 2 | 51321829996 | $0.97 | Shop at ECS Tuning | |||||
| 13 | Washer | 7X29X2 | 2 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X10 | 4 | 07119913428 | ENDED | Shop at ECS Tuning | ||||
| 15 | Washer | 7X29X2 | 2 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 16 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 17 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
