Door window for BMW 2500-3.3Li 3.0S (1977)

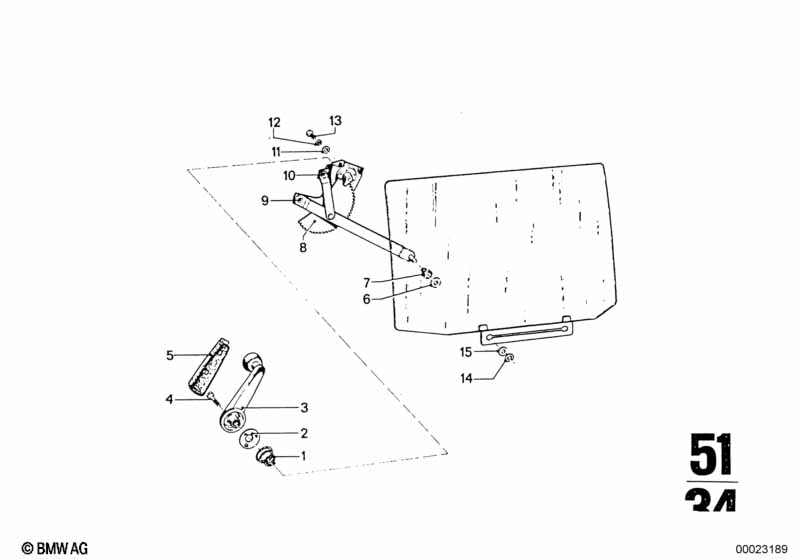

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conical spring | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 02 | Stop disk | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 07 | Conical spring | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 08 | Window lifter rear left | 1 | 51341800295 | $55.21 | ENDED | Shop at ECS Tuning | ||||
| 08 | Window lifter rear right | 1 | 51341800296 | $55.21 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rivet | 2 | 51341829556 | ENDED | Shop at ECS Tuning | |||||
| 10 | Rivet | 4 | 51321829995 | $0.97 | Shop at ECS Tuning | |||||
| 11 | Washer | A6,4-200HV-ZNS3 | 6 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Set tooth washer 25 | A6,4 | 6 | 07509064287 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M6X8 | 10 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 14 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 15 | Washer | 4 | 51321836323 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
