Door window for BMW 2500-3.3Li 2500 (1970)

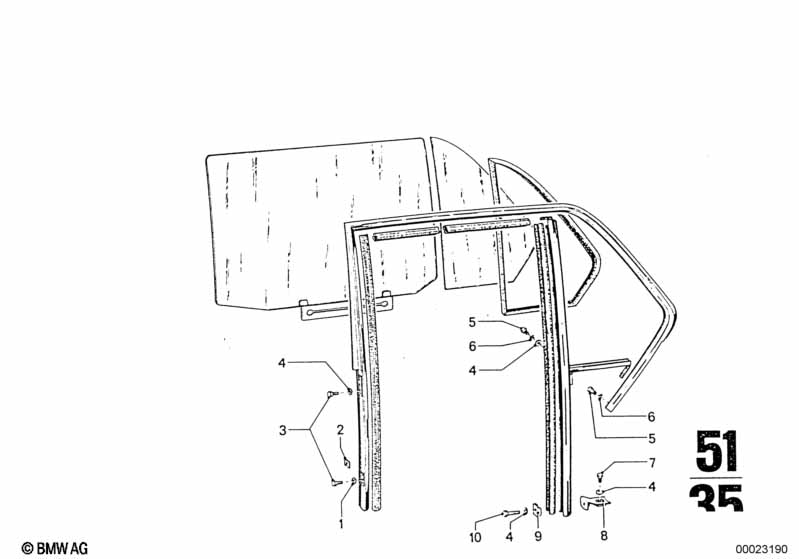

This Door window technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 7X29X2 | 2 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 02 | Shim | X | 51321807441 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shim | X | 51321807442 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shim | X | 51321807443 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shim | X | 51321807444 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shim | X | 51321807445 | ENDED | Shop at ECS Tuning | |||||
| 02 | Shim | X | 51321807446 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-200HV-ZNS3 | 12 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X16-Z3-2 | 8 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Support | 4 | 51341800488 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 2 | 51326654139 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X35 | 2 | 07119913579 | $0.24 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
