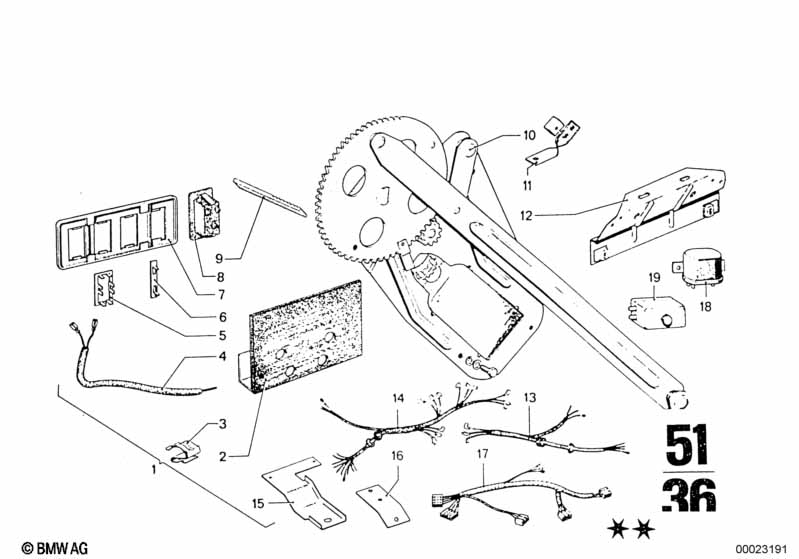

Door window lifting mechanism front for BMW 2500-3.3Li 2800 (1971)
This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retro.kit, window lifts, electric,front | 1 | 51331813259 | ENDED | Shop at ECS Tuning | |||||
| 02 | Protection plate | 2 | 61131353377 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cable clamp | D=9/B=4 | 4 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Wiring set | 1 | 61121353140 | ENDED | Shop at ECS Tuning | |||||
| 05 | Switch cover | 1 | 54139734125 | ENDED | Shop at ECS Tuning | |||||
| 06 | Clamp | 7 | 51411808428 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 51411808419 | ENDED | Shop at ECS Tuning | |||||
| 08 | Switch | 2 | 61311355415 | $45.17 | Shop at ECS Tuning | |||||
| 09 | Steering rack | 1 | 51378745162 | ENDED | Shop at ECS Tuning | |||||
| 10 | Electr.window lifter front left | 1 | 51331807709 | ENDED | Shop at ECS Tuning | |||||
| 10 | Electr.window lifter front right | 1 | 51331807710 | ENDED | Shop at ECS Tuning | |||||
| 11 | Support | 2 | 61131353134 | ENDED | Shop at ECS Tuning | |||||
| 12 | Support plate | 2 | 51331809837 | ENDED | Shop at ECS Tuning | |||||
| 13 | Wiring set | 1 | 08/1968 | 02/1977 | 61121353137 | ENDED | Shop at ECS Tuning | |||
| 14 | Wiring set | 1 | 08/1968 | 02/1977 | 61121353138 | ENDED | Shop at ECS Tuning | |||
| 15 | Holder | 1 | 61311354538 | ENDED | Shop at ECS Tuning | |||||
| 16 | Bracket | 1 | 61131354539 | ENDED | Shop at ECS Tuning | |||||
| 17 | Wiring set | 1 | 08/1968 | 02/1977 | 61121353141 | ENDED | Shop at ECS Tuning | |||
| 18 | Starter motor relay | 1 | 61319059177 | $26.11 | Shop at ECS Tuning | |||||
| 19 | Fuse box | 1 | 61131353136 | $16.21 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
