Door window lifting mechanism front for BMW 2500-3.3Li 2500 (1977)

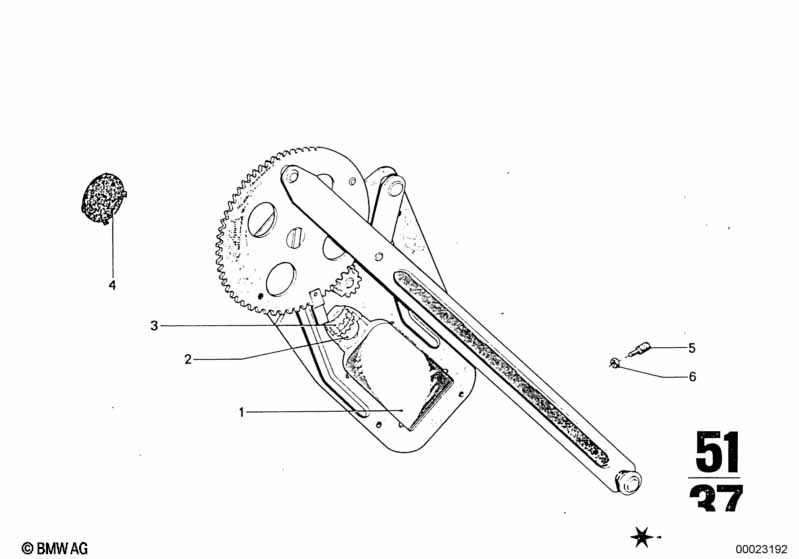

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.drive | 2 | 54121352715 | $235.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clutch with worm gear | 2 | 51371801878 | $277.88 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pinion for manual lifting | 2 | 51338745163 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cap | SCHWARZ | 2 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
| 04 | Cover seal, bronze | 2 | 51431807842 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bump stop | 2 | 51378545198 | $9.30 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex nut | M6-8 CR | 2 | 07119922050 | $0.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
