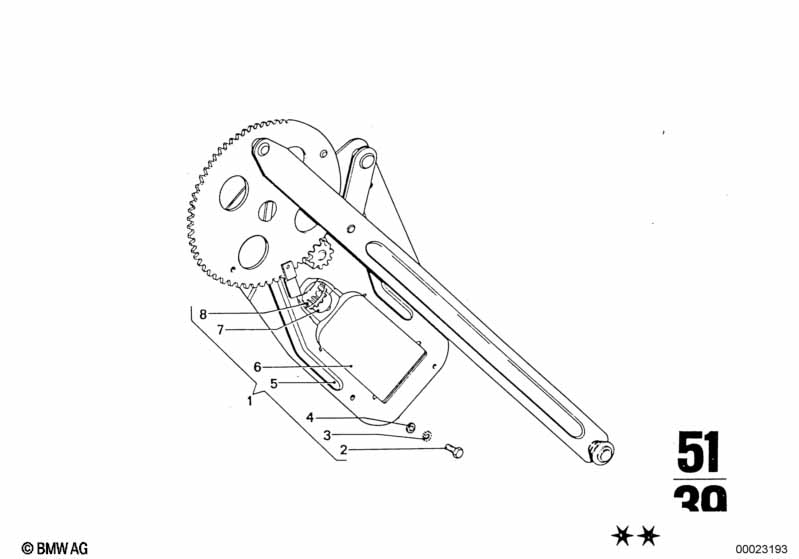

Door window lifting mechanism front for BMW 2500-3.3Li 3.0S (1973)
This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.window lifter front left | 1 | 51331846561 | ENDED | Shop at ECS Tuning | |||||
| 01 | Electr.window lifter front right | 1 | 51331846562 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X8 | 8 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Tooth washer | A6,4 | 2 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Electr.window lifter front left | 1 | 51331846563 | $62.22 | ENDED | Shop at ECS Tuning | ||||
| 05 | Electr.window lifter front right | 1 | 51331846564 | $62.22 | ENDED | Shop at ECS Tuning | ||||
| 06 | Electr.drive left | 2 | 51351375397 | $259.56 | ENDED | Shop at ECS Tuning | ||||
| 06 | Electr.drive right | 2 | 51351375398 | $259.56 | Shop at ECS Tuning | |||||
| 06 | Electr.drive | 1 | 51371358778 | $395.06 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clutch with worm gear | 1 | 51371801878 | $277.88 | ENDED | Shop at ECS Tuning | ||||
| 08 | Pinion for manual lifting | 1 | 51338745163 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
