Door window lifting mechanism rear for BMW 2500-3.3Li 3.0Si (1973)

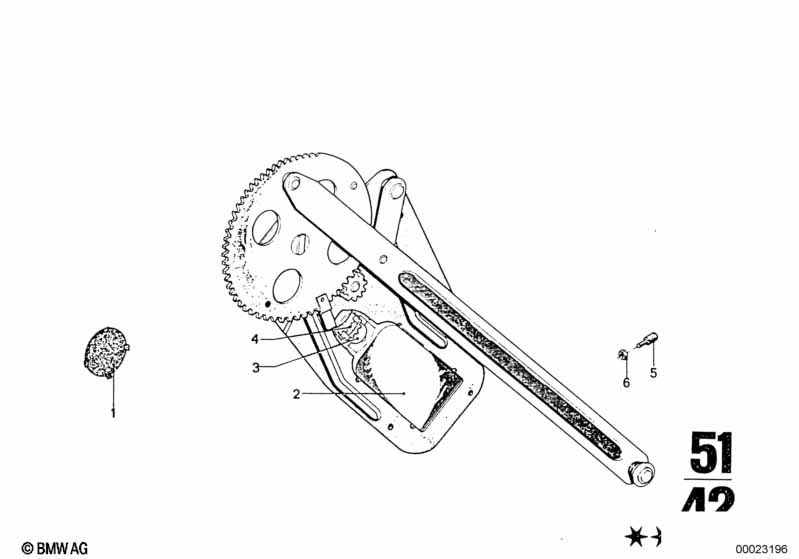

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover seal, bronze | 2 | 51431807842 | ENDED | Shop at ECS Tuning | |||||
| 01 | Plug cap, velours-rot | 2 | 51431807845 | ENDED | Shop at ECS Tuning | |||||
| 01 | Cap | SCHWARZ | 2 | 08/1968 | 02/1977 | 51411869871 | $5.44 | Shop at ECS Tuning | ||
| 02 | Electr.drive | 2 | 54121352715 | $235.48 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bump stop | 2 | 51378545198 | $9.30 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8 CR | 2 | 07119922050 | $0.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 2500-3.3Li 3.0Si produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Cover seal, bronze (Part #51431807842).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 2500-3.3Li 3.0Si produced during 1973. These technical specifications ensure that parts like the Cover seal, bronze (51431807842) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Cover seal, bronze by locating its position on the schematic, which then links to the official BMW part number 51431807842 for the Vehicle trim section.
