Door window lifting mechanism rear for BMW 2500-3.3Li 3.0S (1977)

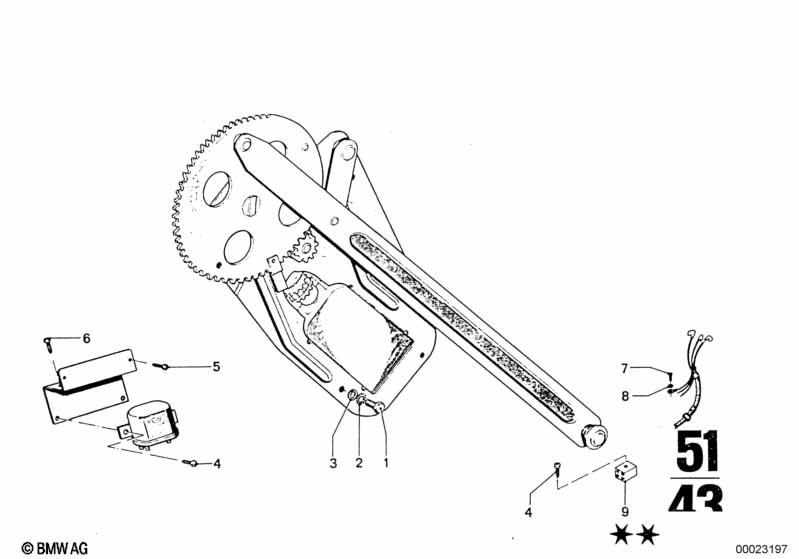

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 02 | Tooth washer | A6,4 | 4 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST2,9X13 | 2 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 05 | Set recess.oval head sheet-metal screw20 | ST2,9X13 | 4 | 07509063305 | ENDED | Shop at ECS Tuning | ||||
| 06 | Set fillister head self-tapping screw 20 | ST4,2X13 | 2 | 07509064383 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Cable clip | B2 | 2 | 07119977615 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119905524).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Hex bolt (07119905524) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119905524 for the Vehicle trim section.
