Door window lifting mechanism rear for BMW 2500-3.3Li 2500 (1971)

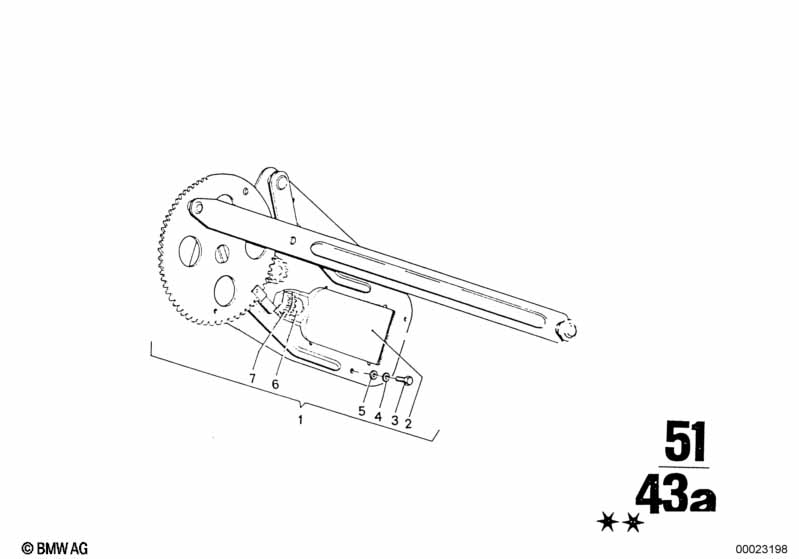

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.window lifter rear left | 1 | 51351846565 | $521.48 | ENDED | Shop at ECS Tuning | ||||
| 01 | Electr.window lifter rear right | 1 | 51351846566 | ENDED | Shop at ECS Tuning | |||||
| 02 | Electr.drive left | 1 | 51351375397 | $259.56 | ENDED | Shop at ECS Tuning | ||||
| 02 | Electr.drive right | 1 | 51351375398 | $259.56 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X8 | 6 | 07119913420 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 04 | Washer | A6,4-200HV-ZNS3 | 6 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Tooth washer | A6,4 | 6 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Clutch with worm gear | 1 | 05/1971 | 02/1977 | 51371801878 | $277.88 | ENDED | Shop at ECS Tuning | ||
| 07 | Pinion for manual lifting | 2 | 05/1971 | 02/1977 | 51338745163 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
