Switch window lifter for BMW 2500-3.3Li 2800 (1971)

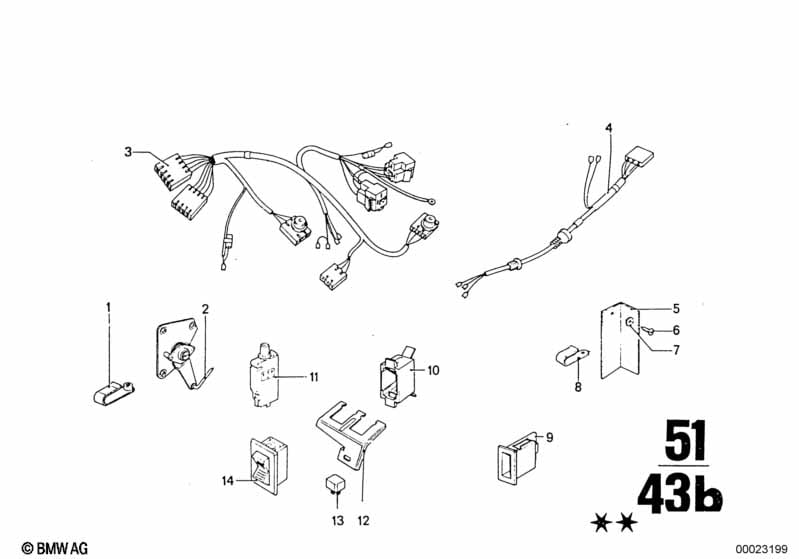

This Switch window lifter technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | 2 | 51351809839 | ENDED | Shop at ECS Tuning | |||||
| 02 | Connection rod | 1 | 51221808698 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wiring set | 1 | 61121356424 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wiring set | 2 | 61121356068 | ENDED | Shop at ECS Tuning | |||||
| 05 | Protection plate | 2 | 51331814509 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST6,3X13 | 4 | 07119906791 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | Clamp | 1X10 | 1 | 07119977231 | ENDED | Shop at ECS Tuning | ||||
| 09 | Switch support | 2 | 61131356871 | $2.46 | Shop at ECS Tuning | |||||
| 10 | Holder | 2 | 61131356870 | $1.68 | Shop at ECS Tuning | |||||
| 11 | Circuit breaker | 2 | 61131358777 | $37.79 | ENDED | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 61311356164 | ENDED | Shop at ECS Tuning | |||||
| 13 | Relay | GELB | 2 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 13 | Mini-relay | 2 | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 14 | Rocker switch | 3 | 61311356006 | $47.30 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
