Armrest, rear for BMW 2500-3.3Li 3.0Si (1975)

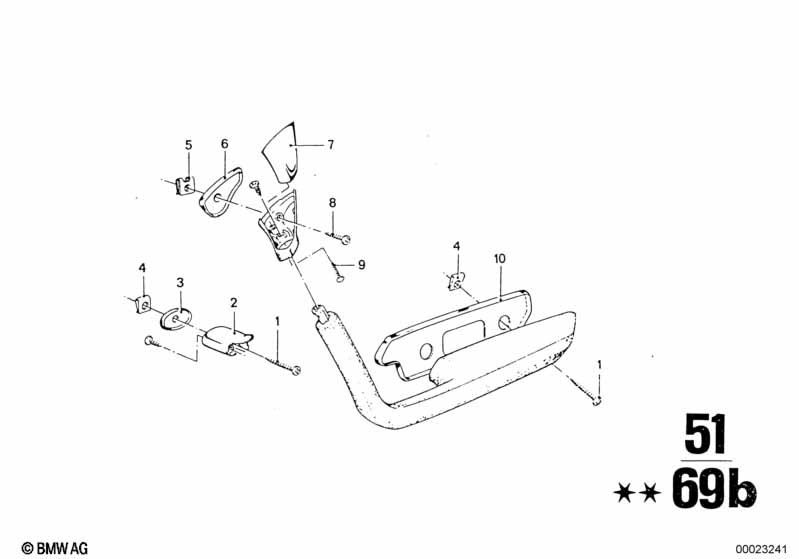

This Armrest, rear technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sheet metal screw | ST4,8X38-R-ZNFE | 4 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Intermediate piece, left | 1 | 51411815251 | $29.16 | ENDED | Shop at ECS Tuning | ||||
| 02 | Intermediate piece, right | 1 | 51411815252 | $30.05 | ENDED | Shop at ECS Tuning | ||||
| 03 | Trim ring | 2 | 51411813557 | $5.57 | Shop at ECS Tuning | |||||
| 04 | Nut holder | M5 | 6 | 51341813289 | ENDED | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Trim ring | 1 | 09/1973 | 02/1977 | 51421813571 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim ring | 1 | 09/1973 | 02/1977 | 51421813572 | ENDED | Shop at ECS Tuning | |||
| 07 | Cap | 1 | 09/1973 | 02/1977 | 51411815253 | ENDED | Shop at ECS Tuning | |||
| 07 | Cap | 1 | 09/1973 | 02/1977 | 51411815254 | ENDED | Shop at ECS Tuning | |||
| 08 | Fillister head screw | M5X16 | 4 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Set csk. lenshead screw 20 | ST3,9X19 | 2 | 07509064402 | ENDED | Shop at ECS Tuning | ||||
| 10 | Decorative frame left | 1 | 09/1973 | 02/1977 | 51421813573 | ENDED | Shop at ECS Tuning | |||
| 10 | Decorative frame right | 1 | 09/1973 | 02/1977 | 51421813574 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Armrest, rear?
- This technical diagram illustrates the Armrest, rear within the Vehicle trim group for the 2500-3.3Li 3.0Si produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Sheet metal screw (Part #07119905199).
- Which models use the hardware listed in this Armrest, rear?
- The hardware and components featured in the Armrest, rear are specific to the 2500-3.3Li 3.0Si produced during 1975. These technical specifications ensure that parts like the Sheet metal screw (07119905199) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest, rear assembly?
- Each item in the Armrest, rear corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Sheet metal screw by locating its position on the schematic, which then links to the official BMW part number 07119905199 for the Vehicle trim section.
