Trim panel for BMW 2500-3.3Li 2800 (1971)

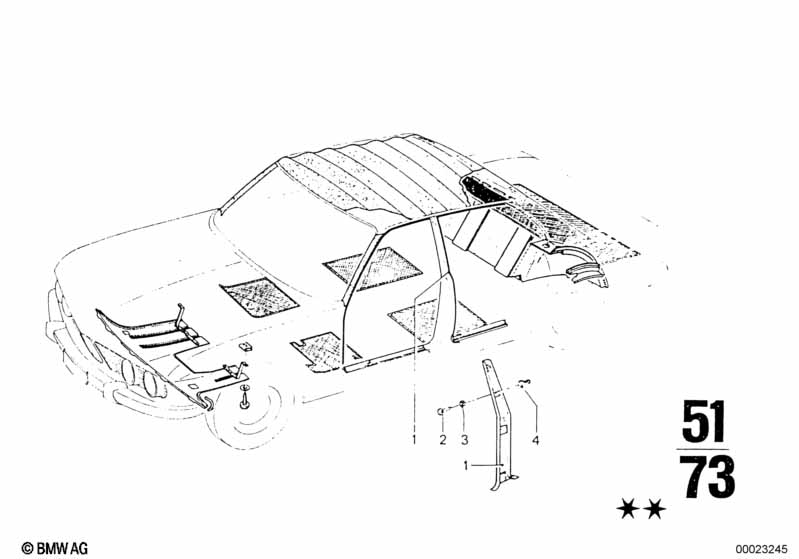

This Trim panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering column-center left | 1 | 51431837533 | ENDED | Shop at ECS Tuning | |||||
| 01 | Covering column-center right | 1 | 51431837534 | $172.98 | ENDED | Shop at ECS Tuning | ||||
| 02 | Recessed oval head sheet-metal screw | ST4,2X16 | 4 | 07119902497 | $0.13 | Shop at ECS Tuning | ||||
| 03 | Hollow washer | 4 | 51211859979 | $0.40 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | 3,9 | 4 | 51135680113 | $0.28 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800 Trim panel?
- This technical diagram illustrates the Trim panel within the Vehicle trim group for the 2500-3.3Li 2800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Covering column-center left (Part #51431837533).
- Which models use the hardware listed in this Trim panel?
- The hardware and components featured in the Trim panel are specific to the 2500-3.3Li 2800 produced during 1971. These technical specifications ensure that parts like the Covering column-center left (51431837533) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel assembly?
- Each item in the Trim panel corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800, you can identify the Covering column-center left by locating its position on the schematic, which then links to the official BMW part number 51431837533 for the Vehicle trim section.
