Trim panel for BMW 2500-3.3Li 3.3L (1975)

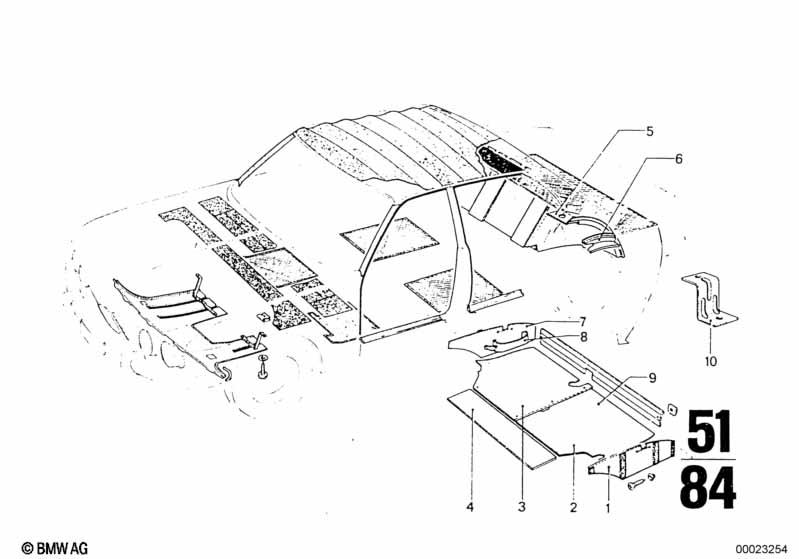

This Trim panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 51471803985 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 08/1968 | 02/1977 | 51471800085 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 08/1968 | 02/1977 | 51471800086 | $85.37 | Shop at ECS Tuning | |||
| 04 | Trim panel | 1 | 08/1968 | 02/1977 | 51471804141 | ENDED | Shop at ECS Tuning | |||
| 05 | Trim panel | 1 | 51471832497 | ENDED | Shop at ECS Tuning | |||||
| 05 | Trim panel | 1 | 51471832498 | ENDED | Shop at ECS Tuning | |||||
| 06 | Trim panel | 1 | 08/1968 | 02/1977 | 51471803913 | ENDED | Shop at ECS Tuning | |||
| 06 | Trim panel | 1 | 08/1968 | 02/1977 | 51471803914 | ENDED | Shop at ECS Tuning | |||
| 07 | Trim panel | 1 | 51471805438 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trim panel | 1 | 51471834698 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trim panel | 1 | 08/1968 | 02/1977 | 51471803986 | $15.74 | ENDED | Shop at ECS Tuning | ||
| 08 | Trunk bag | 1 | 08/1968 | 02/1977 | 51471808730 | $90.40 | ENDED | Shop at ECS Tuning | ||
| 09 | Trimming foil | MITTELGRAU | X | 51951811281 | $120.86 | Shop at ECS Tuning | ||||
| 10 | Support | 1 | 08/1968 | 02/1977 | 51471842128 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
