Underride portection, front for BMW 2500-3.3Li 2800 (1973)

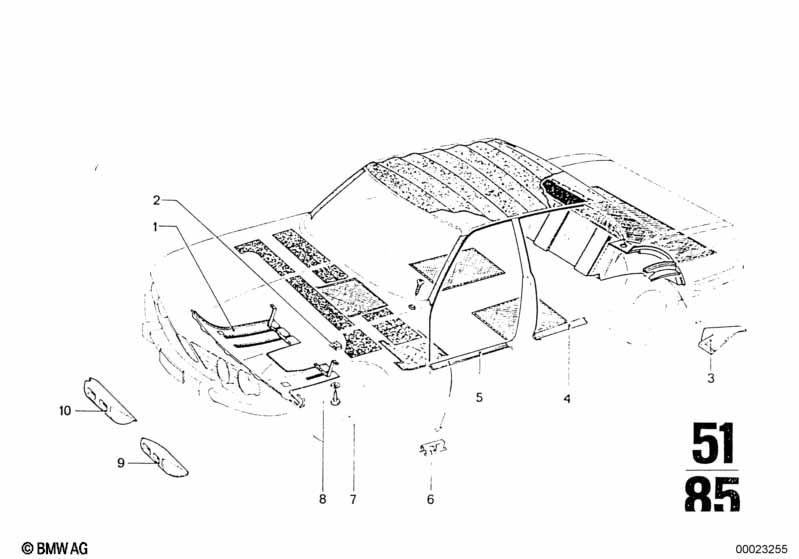

This Underride portection, front technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel | 1 | 51471807684 | $328.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Body nut | 4 | 51471805027 | ENDED | Shop at ECS Tuning | |||||
| 03 | Filling insert left | 1 | 51471805329 | ENDED | Shop at ECS Tuning | |||||
| 03 | Filling insert right | 1 | 51471805330 | ENDED | Shop at ECS Tuning | |||||
| 04 | Decorative strip | 2 | 08/1968 | 02/1977 | 51471802303 | $10.16 | ENDED | Shop at ECS Tuning | ||
| 05 | Sill strip left | 2 | 08/1968 | 02/1977 | 51471802451 | $9.09 | ENDED | Shop at ECS Tuning | ||
| 06 | Clamp | 20 | 51471800290 | $1.76 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,8X16 Z2 | 9 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 08 | Washer | 10X5,3X1-200 HV | 9 | 07119904206 | Shop at ECS Tuning | |||||
| 08 | Washer | 5.3-140 HV-ZNS | 9 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Filling insert left | 1 | 08/1968 | 02/1977 | 51471820625 | ENDED | Shop at ECS Tuning | |||
| 10 | Padding | 1 | 08/1968 | 02/1977 | 51471801706 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
