Trim panel for BMW 2500-3.3Li 2800Bav (1971)

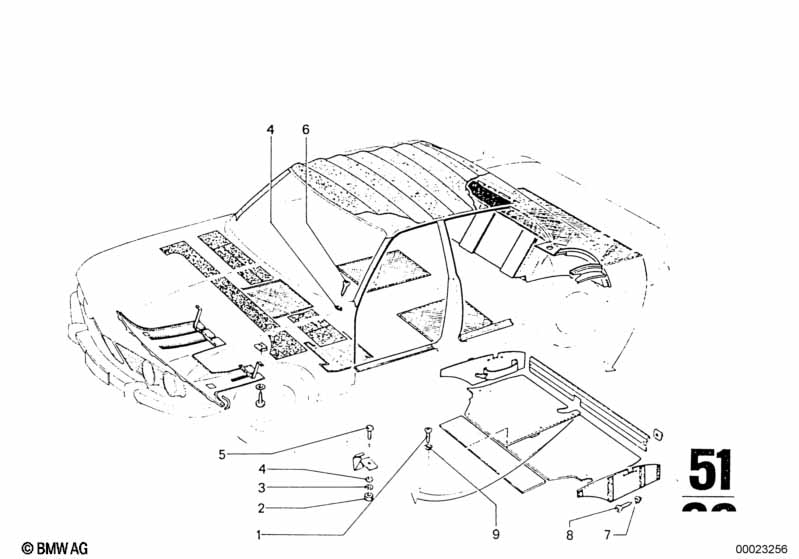

This Trim panel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set recess.oval head sheet-metal screw20 | ST2,9X13 | 6 | 07509063305 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut | M4-A2-70 | 3 | 07119922854 | Shop at ECS Tuning | |||||
| 03 | Spring washer | B4 | 3 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | 9X4,3X0,8-200HV | 3 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | M4X16 | 3 | 07119928103 | $1.40 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister head self-tapping screw | ST2,9X19 | 8 | 07119906712 | $0.07 | ENDED | Shop at ECS Tuning | |||
| 07 | Body nut | ST2,9-1 | 9 | 07129901631 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hollow washer | 12 | 51417570111 | $1.64 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800Bav Trim panel?
- This technical diagram illustrates the Trim panel within the Vehicle trim group for the 2500-3.3Li 2800Bav produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Set recess.oval head sheet-metal screw20 (Part #07509063305).
- Which models use the hardware listed in this Trim panel?
- The hardware and components featured in the Trim panel are specific to the 2500-3.3Li 2800Bav produced during 1971. These technical specifications ensure that parts like the Set recess.oval head sheet-metal screw20 (07509063305) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim panel assembly?
- Each item in the Trim panel corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800Bav, you can identify the Set recess.oval head sheet-metal screw20 by locating its position on the schematic, which then links to the official BMW part number 07509063305 for the Vehicle trim section.
