Sound insulation for BMW 2500-3.3Li 2.8L (1977)

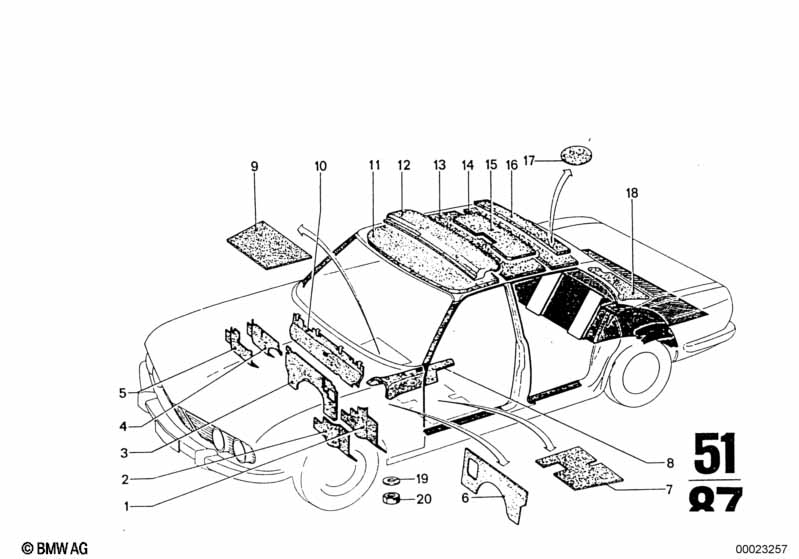

This Sound insulation technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2.8L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 11 | Sound insulation | 1 | 51481825553 | ENDED | Shop at ECS Tuning | |||||
| 12 | Sound insulating roof rear | 1 | 51481820547 | ENDED | Shop at ECS Tuning | |||||
| 15 | Sound insulation | 1 | 51481825550 | ENDED | Shop at ECS Tuning | |||||
| 17 | Sound insulating depositing panel | 2 | 51481805817 | ENDED | Shop at ECS Tuning | |||||
| 18 | Sound insulation | 1 | 51481826901 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2.8L Sound insulation?
- This technical diagram illustrates the Sound insulation within the Vehicle trim group for the 2500-3.3Li 2.8L produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation (Part #51481825553).
- Which models use the hardware listed in this Sound insulation?
- The hardware and components featured in the Sound insulation are specific to the 2500-3.3Li 2.8L produced during 1977. These technical specifications ensure that parts like the Sound insulation (51481825553) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulation assembly?
- Each item in the Sound insulation corresponds to the numbered list below the illustration. For the 2500-3.3Li 2.8L, you can identify the Sound insulation by locating its position on the schematic, which then links to the official BMW part number 51481825553 for the Vehicle trim section.
