Emblems / letterings for BMW 7 Series G11 LCI 730d (2022)

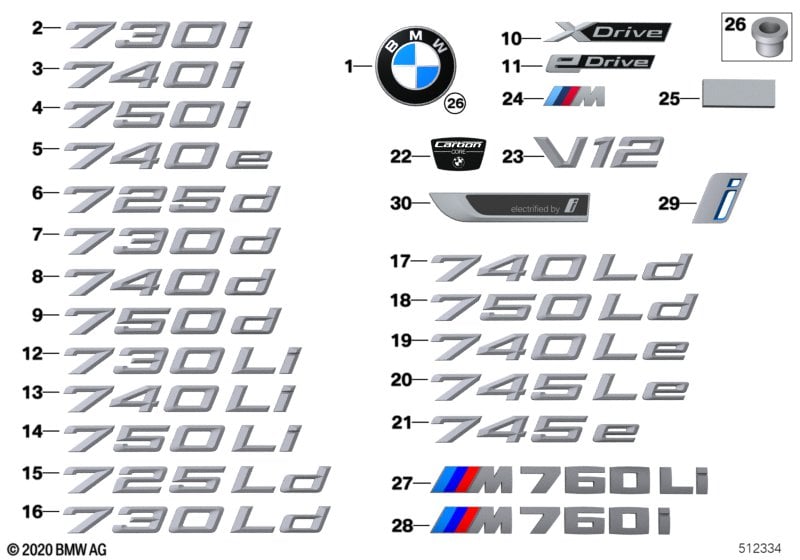

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Badge | Ø 95MM | 1 | 51147498981 | Shop at ECS Tuning | |||||
| for trunk lid | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51147465111 | Shop at ECS Tuning | |||||
| For vehicles with Deleted, model lettering |
S320A=No |
|||||||||
| 07 | Label | 730D | 1 | 51147376819 | Shop at ECS Tuning | |||||
| 22 | Badge | CARBON-CORE | 2 | 51147442199 | Shop at ECS Tuning | |||||
| For vehicles with Delete extra external lettering and M Aerodynamics package |
S3DZA=No S715A=Yes |
|||||||||
| 24 | Emblem | - M - | 2 | 51148058881 | Shop at ECS Tuning | |||||
| 25 | Padding | 30X8X2 | 1 | 51357163179 | Shop at ECS Tuning | |||||
| 26 | Grommet | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
