Knee protector for BMW 3 Series E46 M3 (2002)

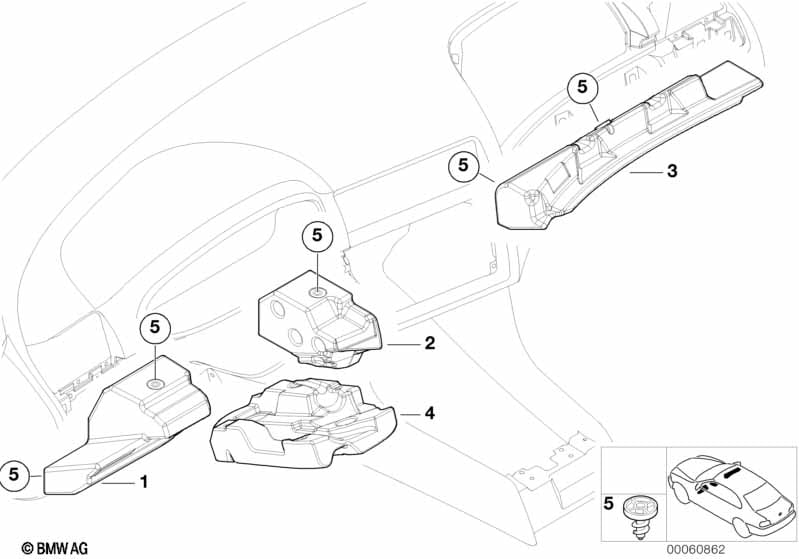

This Knee protector technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Knee protector left | 1 | 51457115935 | $21.62 | Shop at ECS Tuning | |||||
| 02 | Knee protector right | 1 | 51457115936 | $21.62 | Shop at ECS Tuning | |||||
| 03 | Knee protect.co-driver's side upper part | 1 | 51457115934 | $21.62 | Shop at ECS Tuning | |||||
| 04 | Knee protector, steering column | 1 | 51458201467 | $21.62 | Shop at ECS Tuning | |||||
| 05 | Screw | TS4X20 | 8 | 07129905612 | $0.20 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Knee protector?
- This technical diagram illustrates the Knee protector within the Vehicle trim group for the 3 Series E46 M3 produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Knee protector left (Part #51457115935).
- Which models use the hardware listed in this Knee protector?
- The hardware and components featured in the Knee protector are specific to the 3 Series E46 M3 produced during 2002. These technical specifications ensure that parts like the Knee protector left (51457115935) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Knee protector assembly?
- Each item in the Knee protector corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Knee protector left by locating its position on the schematic, which then links to the official BMW part number 51457115935 for the Vehicle trim section.
