Floor covering for BMW MINI Clubman F54 Cooper (2019)

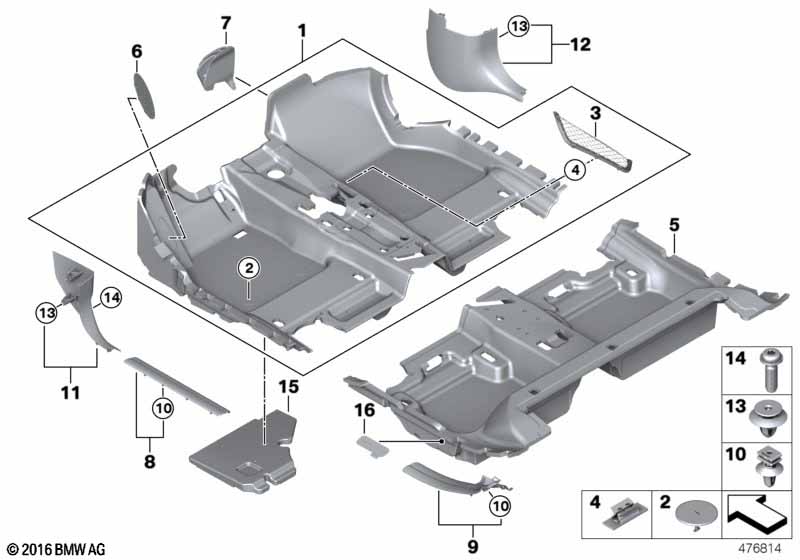

This Floor covering technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | SCHWARZ | 1 | 51477392165 | Shop at ECS Tuning | |||||
| 02 | Hook&loop element with bayonet fastener | D62MM/L16MM | 4 | 07149166608 | $2.17 | Shop at ECS Tuning | ||||
| 03 | Footwell net | 1 | 51477362431 | Shop at ECS Tuning | ||||||
| 04 | Clip | 3 | 07146968215 | $1.94 | Shop at ECS Tuning | |||||
| 05 | Floor covering rear | SCHWARZ | 1 | 51477392158 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works interior package and John Cooper Works Chili package |
P7KMA=Yes P7KPA=Yes |
|||||||||
| 06 | Insert, foot rest, stainless steel | 1 | 51477149471 | $31.35 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works interior package and John Cooper Works Chili package |
P7KMA=Yes P7KPA=No |
|||||||||
| 06 | Insert, foot rest, stainless steel | 1 | 51477149471 | $31.35 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works interior package and John Cooper Works Chili package |
P7KMA=No P7KPA=Yes |
|||||||||
| 06 | Insert, foot rest, stainless steel | 1 | 51477149471 | $31.35 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works interior package and John Cooper Works Chili package |
P7KMA=No P7KPA=No |
|||||||||
| 06 | Insert, foot rest | 1 | 51477138446 | $6.52 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 07 | Crash element, bulkhead, right | 1 | 51477371472 | Shop at ECS Tuning | ||||||
| 08 | Cover strip, entrance front left | SCHWARZ | 1 | 51477391491 | Shop at ECS Tuning | |||||
| 08 | Cover strip, entrance front right | SCHWARZ | 1 | 51477391492 | Shop at ECS Tuning | |||||
| 09 | Cover strip, entrance rear left | SCHWARZ | 1 | 51477391495 | Shop at ECS Tuning | |||||
| 09 | Cover strip, entrance rear right | SCHWARZ | 1 | 51477391496 | Shop at ECS Tuning | |||||
| 10 | Clip, grey | 4 | 51478262533 | $0.74 | Shop at ECS Tuning | |||||
| 11 | Side trim panel, front lower left | SCHWARZ | 5 | 51437391501 | Shop at ECS Tuning | |||||
| 11 | Side trim panel, front lower left | SCHWARZ | 5 | 51437416253 | NoS | Shop at ECS Tuning | ||||
| 12 | Side trim panel, front lower right | SCHWARZ | 1 | 51437391502 | Shop at ECS Tuning | |||||
| 13 | Clip | 5 | 07147152593 | $0.17 | Shop at ECS Tuning | |||||
| 14 | Screw | VS-TS5X16 SW | 2 | 51139908498 | Shop at ECS Tuning | |||||
| 15 | Foam insert footwell front left | 1 | 51477308799 | Shop at ECS Tuning | ||||||
| 15 | Foam insert footwell front right | 1 | 51477308800 | Shop at ECS Tuning | ||||||
| For vehicles with John Cooper Works Package and JCW Aerodynamics kit |
P7HNA=Yes S3A1A=Yes |
|||||||||
| 16 | Sill entry panel, rear | JOHN COOPER W. | 2 | 51775A393F5 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works Package and JCW Aerodynamics kit |
P7HNA=Yes S3A1A=No |
|||||||||
| 16 | Sill entry panel, rear | JOHN COOPER W. | 2 | 51775A393F5 | Shop at ECS Tuning | |||||
| For vehicles with John Cooper Works Package and JCW Aerodynamics kit |
P7HNA=No S3A1A=Yes |
|||||||||
| 16 | Sill entry panel, rear | JOHN COOPER W. | 2 | 51775A393F5 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Floor covering?
- This technical diagram illustrates the Floor covering within the Vehicle trim group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Floor trim cover, front (Part #51477392165).
- Which models use the hardware listed in this Floor covering?
- The hardware and components featured in the Floor covering are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Floor trim cover, front (51477392165) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor covering assembly?
- Each item in the Floor covering corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Floor trim cover, front by locating its position on the schematic, which then links to the official BMW part number 51477392165 for the Vehicle trim section.
